Re. diode isolators.
We use a cheap diode isolator on the RV to allow its house battery to be charged by the truck, without back-feeding the truck or the 12V side of the 3-way fridge when the alternator is not spinning. They are effective for this purpose, but I would absolutely not recommend or install one for any application with a charging current of more than about 30 A.
Re. contactor vs. relay. Yes, I get the pedantry here. That said, in current industrial controls practice, “contactor” refers specifically to a normally-open relay that makes or breaks a connection between input and output terminals without a common terminal, is rated for high current and high voltage, and is mechanically guaranteed to open all terminals simultaneously and to suppress any internal arc – i.e. it cannot seize in the “on” position. The distinction is important when you’re wiring up 480V 3ph motors; you’ll use relays to switch and multiply the control signals, but the point where the control signals switch the three 480V phases will have a motor contactor.
Re. fuses. If in doubt, always fuse it. And yes, FETs of any kind can (and do) fail shorted — when they overheat, the dopants in the silicon diffuse through the bulk, rendering the entire chunk of silicon conductive, and therefore break down the p-n / n-p barriers that give the device its switchable one-way properties.
I believe there’s an exception in the standard for short high-current wiring runs that connect an engine starting battery directly to an engine starter. Just about anything else should be fused at the battery. Anything that can keep producing dangerous levels of current after the battery fuse has blown – solar panel regulators, for example – might call for a fuse at the source as well.
Hi Matt,
Didn’t know that about contactors, thanks for the correction, although it will probably always be “a bloody great relay” to this old tech!
One point on not fusing starter motor conductors, you are right that there is an exception in the standards, but it my view they should always be fused: https://www.morganscloud.com/2022/03/19/8-checks-to-stop-our-dc-electrical-system-from-burning-our-boat/
Rod Collins has a great article advising the same: https://marinehowto.com/battery-banks-over-current-protection/
I´ve had a Mastervolt FET isolator (”Battery Mate”) for 10+ years. It is cheap, simple, has worked flawlessly, and the voltage drop is negligible.
Would not bother even considering a charging relay instead of it.
Hi Vesa,
Thanks for the endorsement of the Mastervolt. I have never used their kit, but hear pretty consistent good things.
One thing to note, though. I just recently learned the hard way that Mastervolt really does everything they can to keep you from servicing their products yourself:
a mastervolt battery charger suddenly died on me. I opened it, and found a blown fuse.
Did the manual mention there is an internal fuse?
Not a word of it, not even the fuse specs to be found anywhere.
The only mention about servicing in the manual was ”please contact an authorised service partner…”
To replace a 0,25€ fuse??
Hi Vesa,
Thanks for the warning. Seems the way of the world, sadly.
I totally agree with you John regards the misuse of terms to describe something.
Me. Is this circlip made from 316 Stainless?
Salesperson. ‘Oh yes Sir, it’s stainless…..what’s 316?’
Doh!
Marketing and sales staff don’t you love them 😱🤬
But l agree with Matt’s explanation of a contactor vs relay. There’s a big difference.
Great article as always John, thank you.
Ps hope l’m still on your Christmas list 🤣
I am a retired engineer with 34 years experience working in chemical plants in North Carolina and Tennessee. My use of the words relay and contactor matches Matt’s although I use the term motor starter for the contactors that start electric motors because they may have overcurrent protection and a reverse function (and perhaps other things). And, “a bloody great relay” would have done fine during the five years I worked in the UK.
I have been using a Victron FET based isolator for 4 years with my LFP house bank and and an AGM starting battery. My charge control set up gives the manufacturer’s recommended profile from my alternator and on shore power (14.4 volts constant voltage until charging current falls to 5% of bank capacity then shuts off all charging). My AGM starting battery specification says that it can be charged at an absorption voltage of 14.4 volts (spec is 14.3 +/- 0.1 volts) which seems perfectly compatible with my Lithium charging profile. The absorption phase is certainly much longer that the AGM likes or needs and it gets no float but I see no evidence that the start battery has suffered from overcharging in any way from 4 years with a lot of exposure to the lithium profile. That said, I do not motor much when coastal cruising and I run my alternator 1-2 hours a day on passage for my electrical needs. Seems very simple and understandable to me and I have had no problems to date.
Hi Andrew,
Sounds good, and thanks for the real world report on the Victron FET. As I say in the article your engine battery should be fine as long as you don’t have a lot of solar or motor a heck of a lot, and even then 4 years would be a conservative life. Like most everything, this one is profile dependant.
John: This replies to an old comment, but a recent conversation on our owners group forum sent me back to this article to check on something and I realized that the install on my new boat has a feature (untested) not fully described above. As you said above, on a boat with a lot of solar (or wind or hydrogeneration) or on a boat that does “a heck of a lot of motoring” one could (theoretically) see overcharging of the start battery if a FET splitter is used. On my new boat the Victron FET is wired with its input coming from the alternator, with output #1 going to the charge bus, and with output #2 going to the starting battery. This way the AGM start battery cannot be overcharged by solar, wind, or hydrogenerator but it is always in the circuit to absorb a voltage spike from a house bank disconnect. I do have a manual switch in the alternator field current to shut it down on a long motor, as well, but have never used it on my old boat and I am not sure it is necessary at all. This is a small detail, I know, but I think it will expand the use cases in which a FET may be the best choice on a given boat. I just wanted to add it for completeness in case anyone is thinking of going with a FET (I admit to being a fanboy) over a DC/DC charger. I think that it is a big benefit of the FET system to rule out the possibility of damage to electronics (not just the alternator) in the case of the BMS disconnecting the house bank for whatever reason. This is especially important in cases (not recommended, but lets acknowledge they exist) where a “drop in” set up has inadequate provision for shutting down the alternator before a disconnect. Even in the highest tech systems I think the FET solution is valuable over the DC/DC charger because it is a passive, simple, no moving parts, low cost, backup for when when some magical CAN driven network that is supposed to turn off the alternator field before disconnecting the battery happens to fail.
Hi Andrew,
Sure, I can kinda see that, but nothing changes that an FET splitter results in two very different chemistries (Lithium and lead) being charged with the same voltage profile, which is always sub-optimal.
So will it work? Yes. Are there better ways, in my view, yes. And now that we have higher current DC/DC chargers those who don’t want to go the whole hog with a BMS that controls the charging sources can can still solve the lithium disconnect problem by attaching the alternator to the engine battery and charging lithiums through DC/DC but still get a pretty good amount of charge current. So nothing has changed for me. I would still put the FET splitter a long way third in the list of desirable ways to do this.
How about a Balmar digital Duo Charge? I admit I don’t know which category it fits into but it charges my AGM start battery very well. It appears to be able to handle different battery chemistries.
https://balmar.net/products/digital-duo-charge/
Hi Michael,
Just took a look at it, and it’s a DC/DC charger, which we will cover in the next chapter in a week or so.
I was going to ask about the Xantrex Echo Charge that I use to recharge my engine starting AGM battery from my lead acid flooded battery(s) house bank that is itself charged by the engine alternator and a solar panel. With a 14.4V limited output and a maximum 15A output it seems to me to be a good solution. I’m waiting to see what I missed.
Xantrex’s Echo Charge is also a DC-to-DC charger, similar to Balmar’s Duo Charge.
I wonder if a FET splitter could be used in conjunction with a DC-DC charger? Could you charge a house lithium bank and an AGM starter at the same time and then when the lithium is full and they drop out the AGM could buffer and let down the alternator? (not sure what the FET would do when the BMS shut them) If you were concerned with the lithium bank needing a higher voltage you could use the DC-DC to top it up from the starter bank/alternator. I think if this because I use 4- 30A dc-dc chargers from my large 170Ah starter/alternator battery to charge the house lithium bank so that when they close they wont fry the alternator via the field.
Hi Cory,
I guess maybe something like that might work, but, at least to me, so doing is ignoring the core design problem here which is that the alternator regulator should be told by the lithium BMS to stop charging prior to any sort of shutdown. Also, if you are set up that way, then all of the charging sources can feed a single charge buss on the house side and the engine start battery be charged by a single DC-Dc charger, which is by far the simplest and most elegant way to design a lithium based systems.
That said, if you already have lithium batteries that don’t communicate, I would leave things as they are with the alternator charging the AGM and stick with the DC/DC, since you have already paid for them, and not add the complications of a FET as well. Or, if you want to get more out of the alternator change over to an FET, but that will mean your AGM will not be ideally charged.
Bottom line, I can’t see any elegant way to get the best of both the DC/DC and FET splitter.
Another key point to keep in mind is that none of this deals with the fundamental dangers of load dumps (blackouts):
https://www.morganscloud.com/2022/04/25/why-lithium-battery-load-dumps-matter/
So, particularly if you do have batteries that don’t communicate, I would recommend adding a vital loads backup as detailed here: https://www.morganscloud.com/2022/07/03/building-a-seamanlike-lithium-battery-system/
Thanks for directing me here. As usual. my questions are answered. Brilliant.
Hello John,
I missed the option where a relay is controlled by the excitation wire of the alternator. Meaning the wire that feeds the charge indicator which is on when the ignition is on but the engine is not running. In schematics it is often called “L” or “D+” depending on the region.
This wire is only on when the alternator is delivering amps and off when just ignition is turned on and it has enough power to feed at least one relay (1-2A).
There shouldn’t be a problem, if the housebank is connected directly to the alternator, since the starterbank is always full.
Is this an outdated option?
Hi Jan,
Sure, that sounds like a good option, although I have never seen it done, at least as long as the wire can supply the current.
I would want to check that since the designer would, I think, only expect an idiot light to be connected to it, and these days possible just an LED and some large relays can take quite a bit of power.
Also, I think I’m right in saying that line often goes to ground while charging, not positive?
Hello John
The fantastic thing with D+ is that, it is negative when alternator is stopped and becomes positive when the magnetic fields have build up because of rotation.
The D+ wire was very necessary 30 years ago, because it is feeding the rotor windings from battery positive, to build up a magnetic field and the current for this is limited by the little charge control light (battery symbol) to somewhat 200mA. When the alternator is generating enough power, there is the same potential on both sides of the light and it becomes unlit.
Wikipedia has a good article for this (https://de.wikipedia.org/wiki/Lichtmaschine), unfortunately only in our language. But there are some pictures, where you can see the change from “ignition on” to alternator operating (Betriebszustand). Did not find something in English, maybe they generate power different on the other side of the Atlantic.
In the last days I researched for reliable information for the power output of the D+, but didn’t find anything. But I found that relays from 40A to 80A have a consumption of 1W to 2W, which is 80mA to 150mA @ 13V, which is not so remarkable.

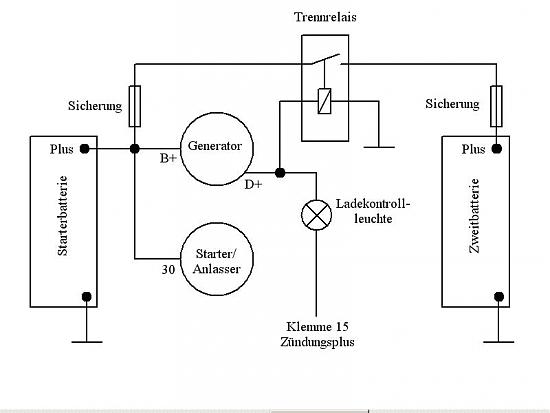

Also there were a lot of information within the camper van community with the subject, how to connect the relay to the D+ wire, picture attached.
Today camper vans looking for artificial D+ signals to working their isolating relay, since modern car electronics have an own intelligence for charging the starter batteries.
But that’s not so important for us yachties, yet?
Hi Jan,
I can see that with a D+ line, however most alternators I have seen seem to be equipped with an L line that goes to ground when the alternator is not charging and therefore lights the light. I guess that too goes to positive when the generator is charging, but have never checked, or seen a gang relay attached to it, but I’m thinking it would work. So that’s good.
All that said, these days I prefer to see the alternator connected to the house battery and a DC/DC charger used to charge the starter battery for the reasons stated here: https://www.morganscloud.com/2022/09/23/cross-bank-battery-charging-dc-dc-chargers/
