There are three usable battery switch options and one that, though very common, no one should go near:

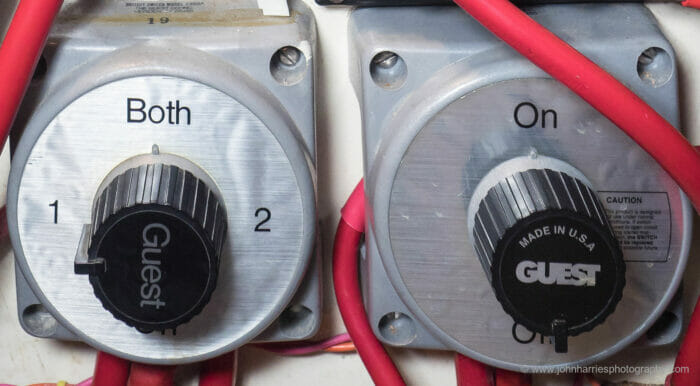

Choosing & Installing Battery Switches
55 CommentsReading Time: 10 minutes
More Articles From Online Book: Electrical Systems For Cruising Boats:
- Why Most New-To-Us Boat Electrical Systems Must Be Rebuilt
- One Simple Law That Makes Electrical Systems Easy to Understand
- How Batteries Charge (Multiple Charging Sources Too)
- 5 Safety Tips For Working on Boat DC Electrical Systems
- 7 Checks To Stop Our DC Electrical System From Burning Our Boat
- Cruising Boat Electrical System Design, Part 1—Loads and Conservation
- Cruising Boat Electrical System Design, Part 2—Thinking About Systems
- Cruising Boat Electrical System Design, Part 3—Specifying Optimal Battery Bank Size
- Balancing Battery Bank and Solar Array Size
- The Danger of Voltage Drops From High Current (Amp) Loads
- Should Your Boat’s DC Electrical System Be 12 or 24 Volt?—Part 1
- Should Your Boat’s DC Electrical System Be 12 or 24 Volt?—Part 2
- Battery Bank Separation and Cross-Charging Best Practices
- Choosing & Installing Battery Switches
- Cross-Bank Battery Charging—Splitters and Relays
- Cross-Bank Battery Charging—DC/DC Chargers
- 10 Tips To Install An Alternator
- Stupid Alternator Regulators Get Smarter…Finally
- WakeSpeed WS500—Best Alternator Regulator for Lead Acid and Lithium Batteries
- Smart Chargers Are Not That Smart
- Replacing Diesel-Generated Electricity With Renewables, Part 1—Loads and Options
- Replacing Diesel-Generated Electricity With Renewables, Part 2—Case Studies
- Efficient Generator-Based Electrical Systems For Yachts
- Battery Bank Size and Generator Run Time, A Case Study
- A Simple Way to Decide Between Lithium or Lead-Acid Batteries for a Cruising Boat
- Eight Steps to Get Ready For Lithium Batteries
- Why Lithium Battery Load Dumps Matter
- 8 Tips To Prevent Lithium Battery Black Outs
- Building a Seamanlike Lithium Battery System
- Lithium Batteries Buyer’s Guide—BMS Requirements
- Lithium Batteries Buyer’s Guide—Balancing and Monitoring
- Lithium Batteries Buyer’s Guide—Current (Amps) Requirements and Optimal Voltage
- Lithium Battery Buyer’s Guide—Fusing
- Lithium Buyer’s Guide—Budget: High End System
- Lithium Buyer’s Guide—Budget: Economy Options
- 10 Reasons Why Hybrid Lithium Lead-Acid Systems are a Bad Idea
- 11 Steps To Better Lead Acid Battery Life
- How Hard Can We Charge Our Lead-Acid Batteries?
- How Lead Acid Batteries Get Wrecked and What To Do About It
- Equalizing Batteries, The Reality
- Renewable Power
- Wind Generators
- Solar Power
- Watt & Sea Hydrogenerator Buyer’s Guide—Cost Performance
- Battery Monitors, Part 1—Which Type Is Right For You?
- Battery Monitors, Part 2—Recommended Unit
- Battery Monitors, Part 3—Calibration and Use
- Battery Containment—Part 1
- Electrical Tips
Please Share a Link:
Thanks for the helpful article, particularly the suggestion to have an alternator disconnect for option 3. Our alternator is connected to the common post of the house battery switch, which has a couple of drawbacks: 1) you could make the mistake you describe in the article, and energize the alternator with the output disconnected from the batteries (although you’d have to ignore the prominent warning placard about this), and 2) you can’t muck around near the alternator with the house batteries on. We haven’t found these to be a huge drawback in practice but it does seem like a place with room for improvement.
Instead of a relay, we have a 1-2-both switch for the engine. Position 1 is the start battery Position 2 is wired to the common post of the house selector. This allows you to start from the house bank if the start bank fails (or even combine them, but if the start battery is really dead, leaving it out of the mix altogether seems preferable to me).
Edit: one thought occurs to me. Might it be easier to mistakenly leave off an alternator disconnect than run into trouble with the alternator wired to the load side of the house bank? I’d probably notice no instruments, chartplotter, etc. before starting the engine, but the only feedback for the position of the alternator disconnect is looking at the switch itself.
Hi Raj,
Yes, I think it’s definitely worth adding the alternator disconnect, although having the notice as you do, is definitely better than I was doing.
On ganging the batteries, I can see the switch working and get your point about leaving a dead starter out completely, so a good option. But, on balance, I think I prefer the momentary switch and relay since there is no way to forget and leave it on and being right next to the start switch it’s to hand in an emergency.
As to leaving the disconnect off, most engine panels will give us a low voltage alarm in fairly short order, since they expect charge level voltages. I’m also pretty much in the habit of glancing at the battery monitor to check for proper charging after starting the engine, just as I keep an eye on temperature etc.
Thanks John. You’re right, I think we’d notice if the alternator disconnect were left off. I always check for proper charging, if nothing else out of greed for those watts while the engine is running.
I see from RC’s article that as long as the alternator disconnect also disconnects the power to the regulator, there is no risk to the alternator if it is left off by mistake. It’s important to wire that right, otherwise an alternator disconnect left off could fry the alternator.
Hi Raj,
Not that RC and Al are at odds on this one, See the part under “Weird Shit”. Given that Al designs these things for a living, I think I would tend to go with his thinking, particularly since wiring the field wire through the battery switch auxiliary contacts is easy.
“Weird Shit” is making my head spin. My takeaway is that if the alternator disconnect both removes power from the regulator and disconnects the field wires, it should be ok if the engine is mistakenly run with the alternator disconnect off. Does that track with your thinking?
Hi Raj,
The field wire is only disconnected if it’s run through the auxiliary contacts on the switch. On most every installation the field wire is directly and always connected from the regulator to the alternator. The key point is that if Al is right disconnecting the regulator power wire or alternator output from the battery is not enough to insure this won’t happen.
That’s right, currently, the field wire is not run through the auxiliary contacts on any switch. In planning for the alternator disconnect, I’ll also plan to run them through the auxiliary contacts on the alternator disconnect switch.
Hi Raj,
That’s what I’m recommending. That way there is simply no way for the alternator to get going: no field current=no alternator output. Is it for sure necessary? Beats me, but we don’t want to be the ones who find out the hard way that Al is right!
The question is if there might be some kind of alternator that keeps some residual magnetism for some time – in such a case even disconnecting field will not keep the alternator from producing current when rotating.
I have no idea how to cope with such a situation but maybe shorting D+ to ground (and disconnecting the hot wire before) might help?
Hi Ernest,
That’s an interesting point, and of course you are right that if their is residual magnetism in the field some voltage will appear across the output, regardless of whether or not the field wire is connected, however, with the field wire open circuit the alternator voltage is going to stay low and with the service disconnect open no current will flow. As I understand it, Al’s concern is that the alternator does not become fully energized.
John,
Re. “complete block diagram of the recommended offshore voyagers’ solution, including the variant,” I most certainly would be interested. Cheers, KL
Hi Kit,
OK, it’s a huge job to do right so I need to weigh that against other content. Anyone else have thoughts on this?
Actually I don’t believe a “general offshore wiring block diagram” would be of mainstream interest – my take would be to think through all what you wrote, plus comments, plus my own requirements, and come up with the “personal block diagram”. Might be more to the point, and should then be verified by a pro.
Hi Ernest,
That makes sense, but on the other hand, see Mark’s comment below.
I imagine that the complete block diagram of the recommended offshore voyagers system will eventually appear in the A40 manual. Doing it now will save Maxime et. al. some effort. On the other hand, it is likely that the diagram is coming soon anyway from the A40 team.
I am doing an electrical refit my second boat a baba 35 and it’s a complete mess. I would appreciate the diagram.
Hi John, me too. I’m also working on a complete electric refit for my Oyster 406, and could really use the diagram if you can spare the time.
Me too. Middle of rebuild the electrical system on my 40 years plus Swan. Most electrical is still the original.
I have developed my own diagram, but would love to see one on this site.
A drawing is equal to 1000 words..
Hi Neils,
Having thought a lot about providing detailed system diagrams, I have decided against it, and to stick with simple block diagrams to illustrate a fundamental.
The problem is that there are just too many variables in usage profile to come up with a one-fits-all diagram. Also I think that if a cruiser is going to DIY an electrical system they should first gain enough understanding to create their own design and diagram it. So I will continue to write and update chapters that assist in getting that vital basic understanding, rather than spending days on sample diagrams that won’t be that useful anyway.
The good news is that a read though of our online book will already provide most-all of that required understanding and take about half a working day: https://www.morganscloud.com/category/electrical/online-book-electrical-systems/
Hi John,
Thank you for the response, which makes me realise that my comment was unclear. I did not ment to ask for a complete diagram. Only the rough schematic of the components and how they should be connected according to your idea as presented in you article and the following discussion here in the forum. We all have different equipment and setup. It would be wrong to “dictate” “the” solution 🙂
Thanks
Hi Neils,
I see, and I think you are right, this would be a better article if there was a block diagram illustrating option four. I will put it on my list to do, although that maybe a little while since at the moment my todo list is rather long.
Hi William,
So noted, it may take a while, but I’m thinking that the Online Book really needs a couple of sample system diagrams to be complete.
Hi, excellent article. In fact this whole series is timely for me, as I will be doing some extensive electrical (and mostly electronics) rebuild soon. Anyway, the complete block diagram etc would be appreciated, but I can live without it, since I know it will take time off other things.
But a question about the engine main switch and usage: On my OVNI they are originally placed in the port side aft bedroom, close to the batteries. Electrically, that’s a good place, but operationally, not so much. If I need to start the engine quickly (MOB, collision/grounding avoidance, etc), I need to run downstairs first, which is unfortunate. Therefore, I keep my engine main switch on when inshore, and only turn it off when well offshore. I am now considering one of those remote main switches. They seem to solve most issues. Any experience or thoughts on that? How do you use the main switches?
Hi Arne,
My start battery switch is in the engine room. I’m curious if others do differently, but I leave my engine connected to the start battery when sailing. There is no drain on the start battery except when the ignition circuit is energized, so I don’t see any harm in this. Perhaps I am missing something?
Hi Raj
You are not missing anything, as far as I’m concerned. One thought, I have heard people recommend that the master switch should be outside of the engine space so it can be safely turned off in case of an electrical fire near the engine. That said, my battery switches on the McCurdy and Rhodes were in the engine room too. Hum, this might be a good use of, and worth the complications and expense of, the BlueSea remotes to fix that.
Hi Arne,
My practice is just to leave the engine main switch on at all times except when leaving the boat, and then only for long periods, and when working on the engine.
As to remotes, I would not bother with them since any added complexity pretty much always has a negative effect, albeit probably small in this case, on reliability. My general rule is never add complexity unless it’s really, really, important to do so.
Thank you both. I am just more and more agreeing with the need for simplicity! And yes, I also figured the draw was minuscule, hence I left it on most of the time, but most people I meet say that it should be off (well… just because a lot of people do something, does not make it the right thing…). Anyway, reassuring to hear!
Hi Arne,
If the engine is wired right the battery draw should be zero, even with the the battery master switch on. I’f it’s not, something is wrong and should be fixed.
Not sure who these “many people” are, but I think they are confused. In all the years I have been going to sea, including my years of racing on many boats, I have never been on a boat where the standard practice was to turn the engine battery master switch off other than in the situations I mention above. To me, the engine should always be ready to go at the turn of the key and push of the starter button.
John,
Interesting article. As for your second example, the one you chose for the J109, it appears the Blue Sea makes breakers that would replace the interrupt switches that come standard: https://www.bluesea.com/products/7549/C-Series_Flat_Rocker_Circuit_Breaker_-_Single_Pole_100A
Hi David,
Good point, thanks. I might try that, although it’s a piss off to have to pay twice.
Actually you can order it that way, so you don’t have to pay twice.
Hi Daniel,
Really? The spec clearly says reset only breakers: https://www.bluesea.com/products/8686/Dual_Battery_Bank_Management_Panel
https://www.bluesea.com/products/8690/Dual_Battery_Bank_Management_Panel
Where exactly can we order this with the switching breakers. As far as I can see BlueSea do not sell direct and anyway have no such product. What am I missing here?
OrderPart#
5511e dual circuit battery switch
7056 100A circuit breaker
2x 7208 Black toggle circuit breaker
2x 4111 360 panel adapter
instead of 8609 complete assembly.
I have no idea if this is economical compared to ordering the complete assembly and the replacing the two push button breakers.
All good discussion on a source of issues on most boats I’ve been on.
My system is a variation on the above shown ‘variation on the two on-off switches (using the 1-2-both)’. I have engine start batt completely isolated from the house system, and use a charging relay to connect the two (actually 3 – two house and 1 engine) banks when voltage is over 13 (and disconnects when below). It seems to work well in practice.
As for the drawback of not being able to parallel with the engine start battery… I’ve got a beefy set of nice alligator cables (jumper cables); and easy access to all batteries.
my sytem is old school – all flooded lead acid 6v GC cells; except the engine start which is a group 48 starter batt. I know it’s frowned upon to connect deep cycle and starter batts, but in this particular case, they’ve been playing well together for nearly 10 years, no visible issues…
Hi Ben,
Jumper cables, now there’s a nice simple solution. I used to carry a set on the McCurdy and Rhodes in case the generator battery died. Only ever used them once, but that one time it was useful.
Hi John.
I have what I think is a simplified combination of #2 & 4# in your article:

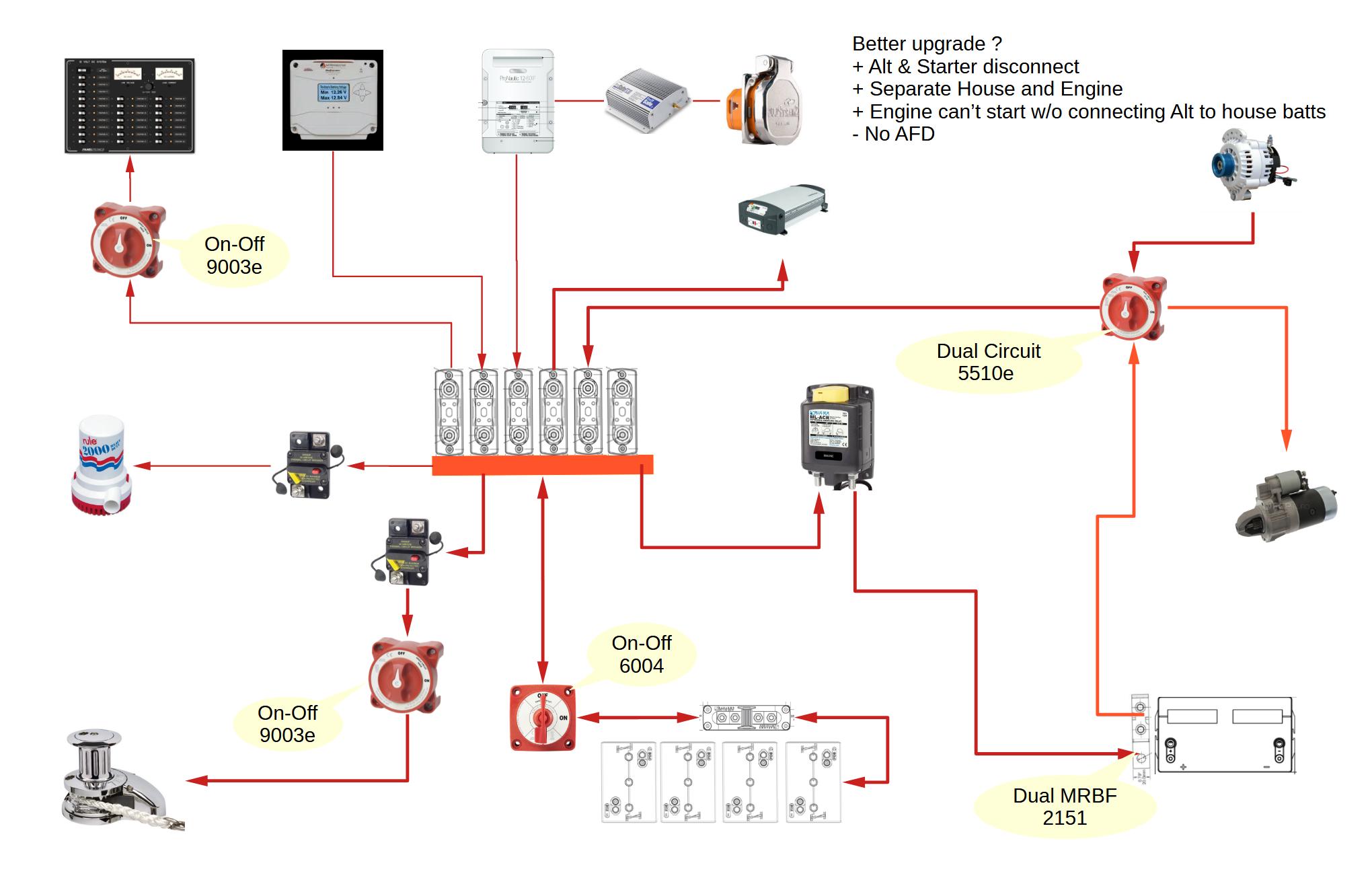

a dual circuit Off-On-Both switch, where 1 connects to house bank, 2 to engine battery, but the output wire going to starter is run through a simple single circuit Off-On switch.
