Deck Hardware Mounting Photo Essay

Time for a break from lithium batteries. Even if you readers don’t need it, your never-humble scribe does!

Also, it’s time we reminded ourselves that there are way more important things that contribute to a safe and fun offshore cruise. The best lithium battery system in the world will seem pretty insignificant if a deck fitting tears off the deck…or even if it just leaks over our bunk.

And because my fingers are tired after all this lithium battery blather, let’s make it a photo post…Johnny likes pictures…

Last winter I mounted several pad eyes and remounted two blocks on our new-to-us J/109.

Over the years I have done a bunch of this work on cored fibreglass boats, most notably every single damned fitting and track on my Fastnet 45 because the builder had not removed the core in the way of fittings, so it had compressed and the boat was a mass of leaks.

Still, even with all that experience, it always surprises me how complicated mounting fittings can be, and how many steps are required to do it right, as well as how much I learn each time.

Given that just about every fibreglass boat owner will be faced with this task, this will be useful to many of you.

And this project was particularly interesting because two of the blocks were mounted on angled Delrin shims that had failed.

Let’s dig in to what I did (with a lot of photos), including a few thoughts on things I could have done better. The day I finish a project convinced that I have done it perfectly will be the day I retire from boats—that kind of hubris is dangerous.

The Challenge

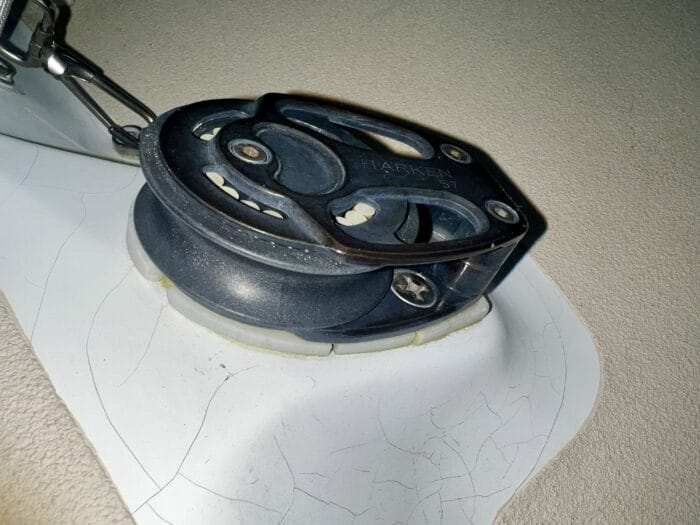

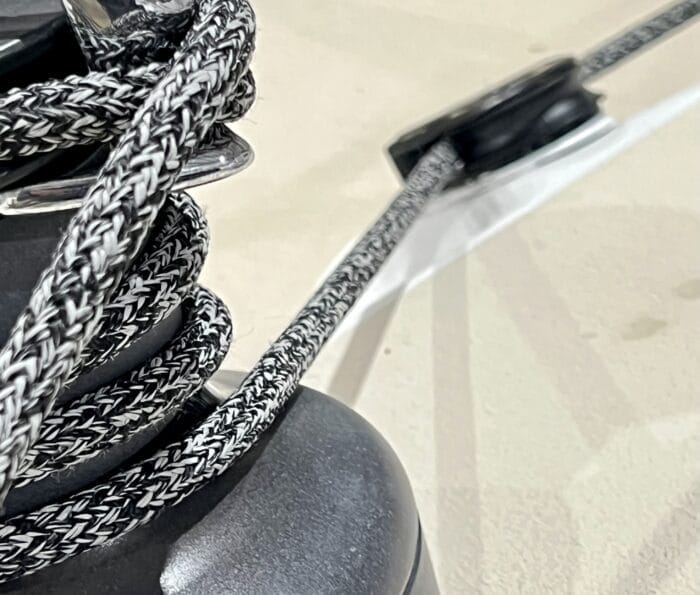

The jib turning blocks were mounted on Delrin shims that had, after 20 years, failed from sun exposure.

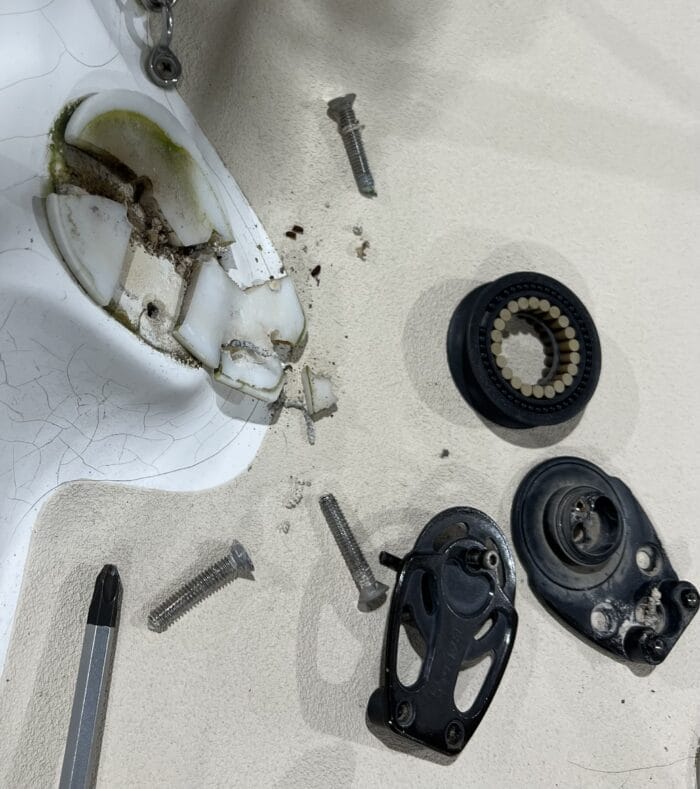

What a mess. Also note that the bolts are bent because the builder did not install a backer plate parallel to the base of the block, a common mistake when installing fittings at an angle.

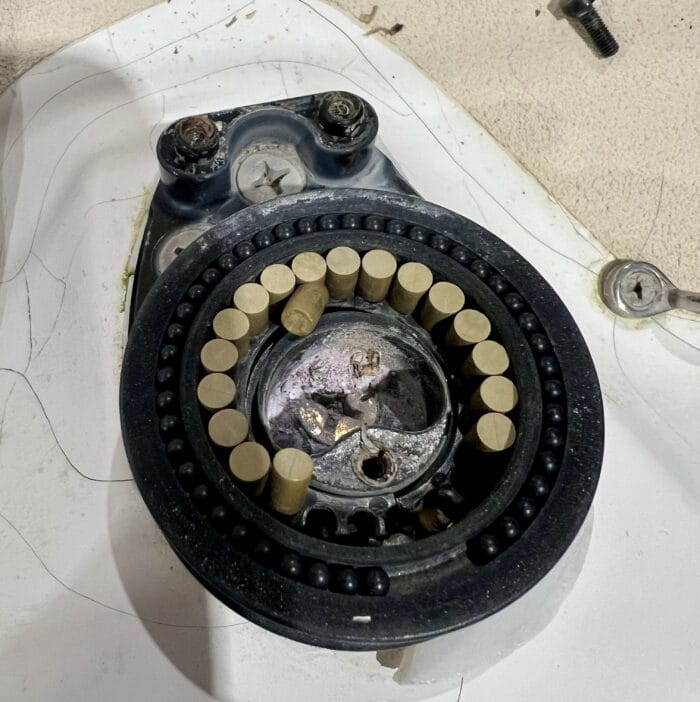

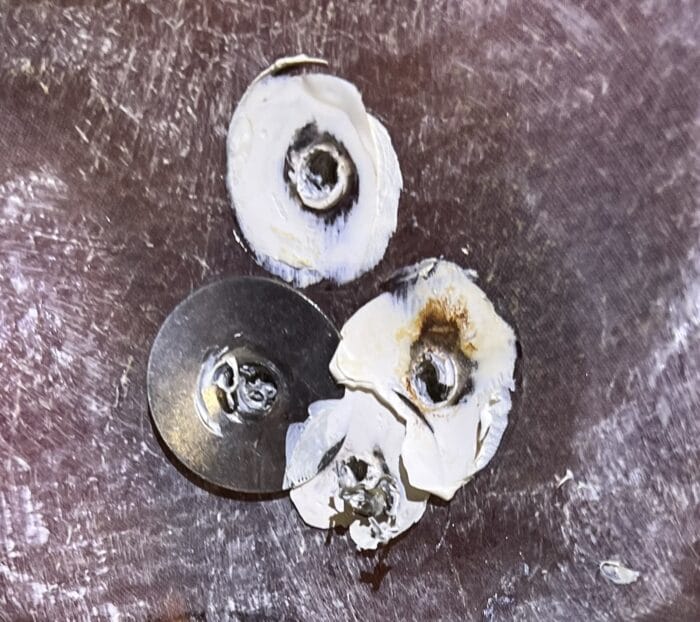

And its gets really ugly underneath. At least Tillotson Pearson had removed the core, so no worries there. But then they had committed an all-too-common crime: Using over-sized washers instead of a proper backing plate.

The block might have been rebuildable but, as a general rule and particularly after 20 years, I believe in replacement, particularly of any deck fitting with moving plastic parts.

Sounds extravagant I know, but if we really want to get out there sailing, rather than spending all our time working on the boat, replacement is often the way to go.

There are few things more heartbreaking than going to all the trouble to fix the mounting right and then having the old fitting fail, particularly if, as is common, an exact replacement for the old fitting with the same bolt pattern is no longer available.

And that brings up another tip. One of the big advantages of replacement over rehab is that the new fitting can easily be repaired or replaced for more years into the future if it gets damaged.

New Angled Shims

So how best to replace the shims? Making a compound angled shim from plastic is actually quite difficult and time consuming, even for a machine shop. And, anyway, there’s a better way:
