Adventure 40, It’s About Displacement and Righting Moment

Q1: What do the Adventure 40 and a Westsail 32 have in common?
Q2: What’s the biggest difference between the Adventure 40 and a Valiant 40?
Q3: What parameter governs the size and expense of the mast and rigging of a sailboat?
Q4: Of the common metrics used to describe a boat (LOA, LWL, Beam, Displacement, Draft), which one tells you the least about the boat and how much she will cost to build and maintain?

A1: They are both about the same size.
A2: The Valiant 40 is a bigger boat, almost 30% bigger.
A3: Maximum righting moment.
A4: LOA (Length overall).

The point of this little quiz is to show that boat design can be really counter-intuitive. And while we voyaging sailors certainly don’t need to become naval architects to select the right boat for our needs, the way that boats are generally described and talked about these days does set us up to fail if we don’t take the trouble to understand the fundamentals of how our boats work.

Size is About Displacement

For some reason the first metric that we always use when describing a boat and comparing it to others is length overall. But that is simply wrong. The right number to use is displacement, being the weight of the water that a boat displaces. Or to simplify further, the size of the hole in the water that the boat makes.

If we think for a moment, this truth becomes obvious. If two boats weigh about the same, like the Adventure 40 and Westsail 32, the volume of the hole in the water they make will be about the same too, and therefore they will be capable of holding about the same amount of gear and people. Further, it will take about the same amount of material to line that hole in the water (the hull) and about the same amount of furniture and gear to fill it. And theretofore these two boats are about the same size, and will, assuming the same construction techniques, cost about the same to build.

Using the same logic, we can see that the Valiant 40 is a bigger boat than the Adventure 40, and will be much more expensive to build, even though they are about the same length, because the former weighs much more than the latter.

Rig Size is About Stability

Now let’s turn to the size and cost of rigging a sailboat, what determines that? The answer is a single number that has nothing to do with overall length: the maximum righting moment.

Imagine you attach a line to the top of the mast of a sailboat and use it to winch the boat over on her side. The strain on the rope will start off quite small, but as the boat is heeled and the keel is pulled away from the vertical, the pull needed to keep heeling the boat will increase until a maximum load is reached. That is the maximum righting moment. And, as we perform this experiment, the loads on the rigging will go up in exactly the same way.

The same thing happens when the heeling is a result of wind pressure on the sails. The loads on the sails and winches will again max out when the boat’s keel weight exerts the maximum force against them in trying to right the boat. And if we make the boat more beamy, or increase the weight of the keel, she will be more stable and the rig will cost more too because everything will need to be stronger and bigger.

By the way, don’t confuse maximum righting moment with safety from capsize or knockdown. It is perfectly possible, in fact likely, that a long thin boat (like the Adventure 40) of a given displacement will have a lower maximum righting moment and therefore a less expensive rig package than a short beamy boat, and still be safer in the ocean from capsize risk. Don’t believe me? Think about a catamaran, which has a huge maximum righting moment due to her extreme beam—this is called form stability—but a quite low ultimate stability angle and almost no ability to return to upright from a capsize.

(I’m not beating up on cats here. I do know that they have advantages too. I’m simply using them to illustrate a basic point.)

Also, don’t make the mistake of assuming that a longer narrower boat with a lower maximum righting moment must heel more (be more tender) than a shorter fatter boat of the same weight. In fact, because the former hull form tends to be easily driven through the water, if designed properly, she can be sailed fast with less sail area and little or no more heel angle than her beamy competitors.

Why 40 Feet?

So we can now see that you could build the Adventure 40 at a lot of different lengths and still spend the same amount.

So why 40 feet? Well, first off, she may get a bit longer, or a bit shorter, as the designer optimizes the hull form. Displacement may go up a bit too, as we make sure that she is sea kindly. But a few initial sketches have confirmed that she will be between 39 and 41 feet overall, 18,000 to 20,000 lbs displacement, and comparatively narrow, but not excessively so. This combination will yield the best combination of speed and sea-kindliness.

Adventure 40 Price

The point of all this is that the Adventure 40’s target price of less than US$200,000 is a lot more credible when you understand that she is a smaller boat than many 40 footers and also, because she is narrower with a lower maximum righting moment, she will have a cheaper rig, sail, and winch package than many of her heavier and/or beamier competitors of the same length.

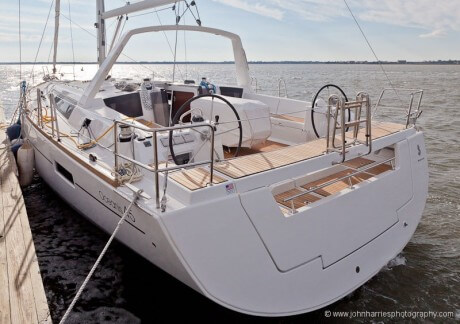

To see what this means in the real world of hard cold cash let’s compare the Adventure 40 to the Beneteau Oceanis 45, a 23,000 lb boat that sells for about US$225,000. The Adventure 40 will be:

  • Substantially smaller.
  • Have a much smaller rig and lower maximum righting moment.
  • Have no dealer network.
  • Be tiller steered instead of having twin wheels. The savings here alone should pay for the massive strength that we plan to build into the Adventure 40.

It’s all starting to make sense, wouldn’t you say?

By the way, Matt Marsh, frequent commenter, engineer, yacht designer, and all round smart guy, has done a preliminary materials and labour analysis that also indicates that the target price is doable.

Adventure 40 Advantages

But you know what the really cool thing is? Not only will the Adventure 40 be less expensive and better built than most so-called cruising boats out there. She will also be a just plain better boat to go to sea in.

The Adventure 40 will be:

    • Much faster than her short fat sisters of the same displacement.
    • As fast as boats of the same water line length (the most important parameter governing speed) that are bigger and much more expensive.
    • Much more efficient under power than a short fat boat.
    • Much easier to sail with lower loads on the sheets and halyards than a wide boat.
    • Much more comfortable when sailing offshore than a short fat boat.

Not only that, but the Adventure 40 will have a better and more usable interior layout than shorter boats of the same displacement. Counter to common wisdom, given the same displacement, it is easier to design a good interior for a long relatively thin boat than a short fat one.

Again, if you think about it, the reason for this becomes obvious: You simply run out of boat before you get everything into a short fat boat. For example, if you want, on one side starting from aft, an eight foot cockpit, eight foot galley, seven foot salon berth and seven foot forward cabin berth, that totals 30-feet and some inches for structure. Doable in a 40-foot boat, but not in a 35 foot one, particularly if you want any storage at all.

You really can have your cake (reasonable price) and eat it too (a great sea boat). Of course if you want a wide condo-like interior to impress your friends in the marina with (and to get thrown across any time you do go offshore) then the Adventure 40 is not for you. Likewise if you would rather the builder of your boat spent money on twin wheels to impress…well I guess they’d impress someone…rather than fitting a simple strong rudder with a tiller and putting the money saved into massively strong construction.

Comments

OK, I know I simplified in this post, maybe even oversimplified. For example I left much about form stability and everything about wetted surface, prismatic coefficient and water plane area out of the discussion. Please don’t waste a lot of your time and mine nitpicking at those items, or any others that you can think of, that are not material to the overall point of this post. Keep in mind that I’m trying to explain, in the simplest and shortest way possible, the factors that effect boat size and cost to build.

On the other hand, if you have a question, or if I have missed something that is material to the core point of the post, I’m all ears. Please leave a comment.
