Storm Mooring

JHH5-12306I have written in the past about our distrust of moorings and how we generally prefer to be on our own anchor when the winds blow hard. However, there is one exception to that rule: our own mooring at our Base Camp. We just had it checked and took some photographs of the process, which show how the mooring that Morgan’s Cloud has ridden out three hurricanes on is built.

Checking It Right

We believe that the only right way to check a mooring that is sunk in soft mud, like ours, is to lift the whole thing every five years.

JHH5II-16158

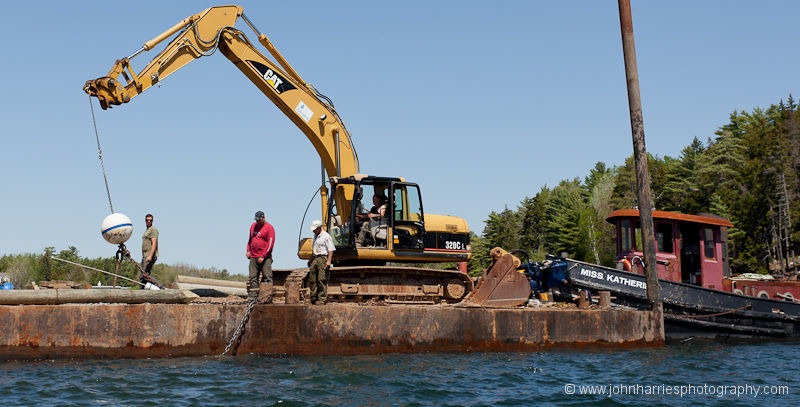

It takes some serious gear to lift a mooring comprised of two 4000 lb (1800 kg) granite boulders.

Granite is Good

In our area, where the use of old metal parts like fork lift counter weights (our mooring in Bermuda) is banned, many people use concrete blocks, but we prefer granite because it loses less of its weight when submerged.

JHHG3-1000411

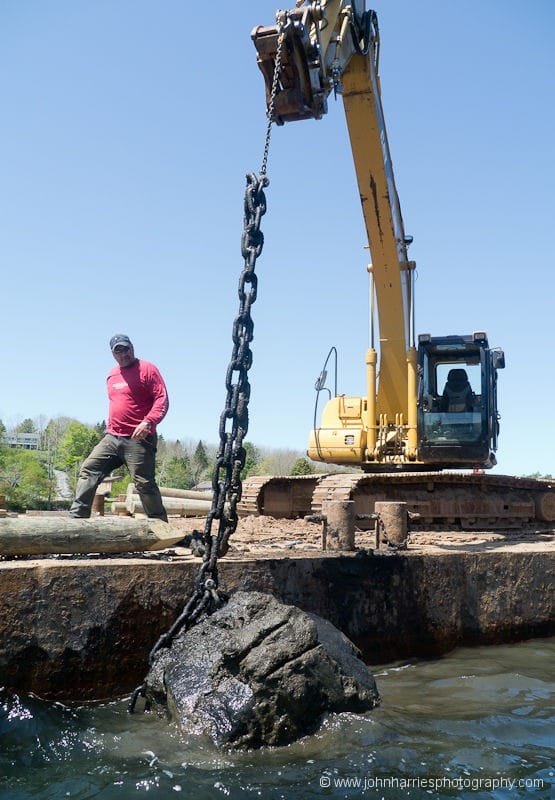

Here comes the first boulder.

Attachment

A hole was drilled right through each of the boulders to take a 1-1/2” (38 mm) diameter steel bar with an eye on one end that the ground chain is attached to with shackles that we had welded closed—no plastic wire-ties here.

Laid Carefully

We carefully laid the two boulders about 20-feet (6 meters) apart in-line with the one nautical mile longest fetch. The ground chain is attached to the up chain, then to the first boulder and from thence to the second boulder. We debated setting up the mooring with the up chain attached at the midpoint between the boulders but decided that, in our case where the fetch from all but one direction is a matter of yards, in-line arrangement would be better.

JHH5II-16192

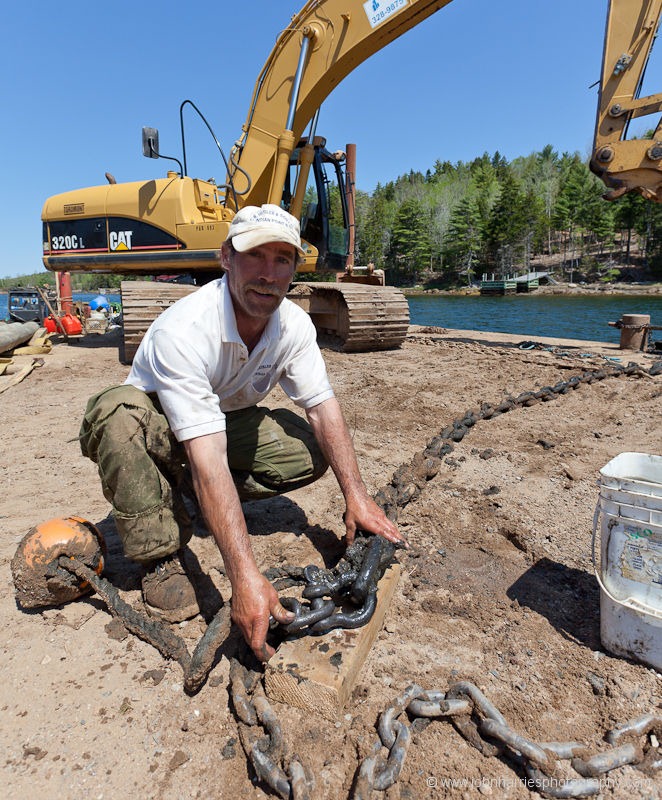

Checking the joint between the 30-feet of 1-1/2” ground chain and 25-feet (7.6 meters) of 3/4” (20 mm) up-chain.

The mooring is in 20-feet of water at high water springs and we allowed for another 5-feet of storm surge.

All Chain is Not Equal

The ground chain is salvaged ship’s anchor chain that has lasted for five years with almost no deterioration.

When we initially laid the mooring we were only able to source, here in Nova Scotia, some no-name chain for the up chain. It was amazing how quickly it corroded; so the next time we drove to Maine, we picked up some American-made Acco chain, which, after three years, still looks brand new. All the shackles are American-made from Crosby and have held up well.

Annual Check

We check down to the joint between the ground and up chains every year by hauling it to the surface using our massive windlass. We attached the swivel at the top of the up chain, just under the buoy, where we can check it frequently, rather than at the joint between the ground and up chains, which is more common practice but harder to check. (I have seen two moorings fail due to the weld holding the nut on the swivel corroding through.)

Winterizing

We winterize by removing the mooring ball and attaching a small and robust fish-farm float—which stands up well to the up to three feet of ice that we can get in our inlet—on a length of line so that all the chain is lying in the mud, which seems to result in significantly less wear and corrosion on the up chain than leaving the mooring in its summer configuration, as many do.

Guard Against a Fumble

I have attached a deep water trawl float on 4-feet (1.25 meters) of line to the joint between the ground and up chains in case we ever lose the upper end while winterizing the mooring. An eventuality that, without this buoy that could be easily found by a diver, would certainly result in losing the whole works forever in the deep mud.

Now you know why we say that the Morgan’s Cloud motto is “if it’s worth doing, it’s worth doing to excess”.

How is your mooring constructed? Please leave a comment.

Further Reading

Like what you just read? Get lots more:

Learn About Membership

Subscribe
Notify of
47 Comments
Oldest
Newest
Inline Feedbacks
View all comments
Nicolas

Perfect no-nonsense mooring. Big deal, really!!

A suggestion. If using a swivel, how about above the buoy, dangling in the air between the water and Morgan Cloud’s stem?

I test my mooring 2x a year by going forward, then going in reverse at full power. At tether’s end, the bow snaps down quite a bit. At this point the force exerted by the 16 ton boat must be quite considerable.

Also I dive every other year, but cannot inspect or retrieve the 6 ton concrete block buried in mud. Ship’s chain that is visible tells me that ship’s chain in the mud is OK.

Matt Marsh

Re. surge test (backing down the boat at full throttle)

If the mooring fails this test, the answer is obvious.

If the mooring holds, though, that doesn’t necessarily mean it’s up to snuff.

Let’s say you put a 12 m (40′) sloop in full reverse, and her bow drops by two feet when the chain snaps tight. Typical moment to trim on a boat this size would be around 130 kg.m/cm, and the chain pulls on the bow, 6 m from the centre of flotation. So the moment is (130kg.m/cm * 60cm * 9.81m/s2) = 77 kN.m, and the bow-d0wn force on the anchor roller is (77kN.m / 6m) = 13 kN. We might have roughly 1.4 to 1 scope (~45 degrees) for a mooring, so that gives (13 / sin45) = 18 kN of tension on the chain….

….which will have no visible effect on anything heftier than 7mm (1/4″) G40 chain. Most of the boat’s kinetic energy was used up in lifting the chain off the seabed, and in forcing water out of the way to let the bow down.

Now, granted, the peak dynamic load will be a bit higher than in this static analysis, but the point is this: The boat under engine can create only a fraction of the loads that a 6-foot wave will create when it lifts her up and back, breaking over the bulwarks as the chain goes bar-tight. The only way I know of to simulate that load is to have a much larger boat pull on the chain so hard that the mooring block lifts off the bottom…. at which point you’re already hauling the thing up, so you may as well look at it.

Matt Marsh

PS – I wouldn’t be worried about shock loading the components by doing a surge test in full reverse. If your boat under engine can create loads- even shock loads- anywhere close to the yield point of the steel, the mooring will be so obviously undersized (or so badly corroded) that you’d be afraid to tie off to it in the first place.

Nicolas

Wow, thank you Matt & John. This is absolutely excellent stuff. Yes it is obvious that 6′ surging waves will far exceed the force exerted by going in full reverse.

In F11 at my mooring the waves don’t go over 2 or 3 feet, which still is a lot more forceful (wind plus waves) than going in full reverse.

Guess I need to send a diver down, to dig his way thru the mud down to the shackle connecting the cement block to the chain, for inspection. We don’t have the facilities for mooring haulout in this small town.

Geir Ove

Lower grade steel that is used, the less it will rust, High grade steel, rust a lot faster,
Just go up in dim, and down in grade, it will be OK, for a very long time.

Arne Mogstad

Hey, old post, but I’m trying anyway. I’m in the process of making a mooring myself for a 40 foot Ovni here in Northern Norway. My idea is to let the boat live on the mooring rather than in a marina, and to therefore size it for the job of our weather (which you know so well what it can be like). The place is rather sheltered for waves and swell, but not so much for wind. Do you have any tips on sizing, and your thoughts on leaving the boat “unattended” on a mooring like that? And just general thoughts on how to arrange the mooring ball etc? Also, I get a feeling that there is a trend towards rope instead of chain as a riser, and it kind of makes sense to me, as it could double as a snubber. Do you have any experience on it? And it’s easier (cheaper) to replace more frequently. I will be diving the mooring myself rather frequently.

Arne 🙂

Eric Klem

Hi Arne,

I continue to be amazed at how little sizing data and information there is out there for moorings, at least that I can find. The different harbors here in the US regulate what is required and there is huge variation in what is required and also some of the recommendations clearly show a lack of understanding of the physics going on. Here is the methodology that I used for sizing. It is far from perfect and I am certainly open to suggestions but hopefully it is helpful. Ideally, it would be an integrated dynamic model where you can play with trade-offs but that is much trickier and with the size of some of the other assumptions, it doesn’t make sense.

I started with getting a design load. This meant picking the conditions that I needed it to work in. The state where I live has a disaster preparedness plan that actually goes through all the recorded severe weather events for the last 150 years. Our mooring has had 2 direct category 1 hurricane hits (one in my lifetime where we had 3 boats on moorings which all survived) in this time and several tropical storm hits. From this, I developed a sustained windspeed target I was comfortable with (this is tricky as you are trying to figure out how far out on a tail of a distribution you feel comfortable with and increasing from say 60 to 70 knots is a huge difference) which I could then correlate to the ABYC load tables. These tables are known to give higher numbers than measured in the real world if you deal with dynamics so I took a look at the work by Drew Frye on the subject and adjusted the number. In our case, we can have some waves from 1 direction so I did not adjust down nearly as much as I might have in other situations.

For the anchor, I applied a safety factor of 2. For our application when I was accounting for wave action, interestingly this put me basically back at the ABYC design load so I could have not done any of the knocking it down to real values and then adding a safety factor. I first looked at granite slabs and used the rough rule of thumb that the holding power is equal to the submerged weight. Unfortunately, the local mooring barge would have been unable to pick that up so I had to look at other options. I am not comfortable with the mushroom design in most bottoms so used a Dor-Mor pyramid. Unfortunately while the data for holding power is scarce on most anchors, it is a single data point on these so I only gave the holding power as half of the manufacturer’s claim. This may be very conservative and effectively give me a safety factor of 4 but it is what I needed to feel comfortable.

For chain, I sized the chain such that the catenary would store the energy equivalent of the boat moving at 2 knots by the time it hit my calculated working load. How I decided this would be the design point is convoluted and a little long for this but it works for me. If I were in a place that was wind only, I would be willing to lower it. Another method that I know of that some people like is to calculate the chain so that it is always pulling horizontally on the anchor at maximum expected load. Unlike anchoring gear, mooring gear really does benefit from catenary if you have enough length and use a big enough size.

For pendants, I used a safety factor of 10 to my calculated maximum load. Nylon does particularly poorly in fatigue applications and 10 gives you the ability to deal with the fatigue and have some safety factor. If there are prolonged storm force conditions, then I replace the working pendant. I discussed our pendant construction in another comment to one of John’s posts, pendants are a very important subject and one that it seems most people around here gloss over far too quickly.

Finally, I gut checked the whole thing against what I know are the local mooring standards and how often boats drag ashore. I did end up with sizing that is significantly more than most but it actually correlates pretty well to the number of boats we see dragging in gales and storms.

I realize that this involved several calculations not shown here and a somewhat scary amount of assumptions. Ideally, we all have some magic calculator that we plug into and get the sizing out but I am unaware of one. Around here, the towns are supposed to provide the info for you but as I mentioned earlier, they don’t seem to be working to the same assumptions. Also, the simplified way they do it won’t work as for example, the shorter your length of chain the heavier it needs to be but they just give a blanket chain size based on boat size and then base length on water depth. This may be no surprise but the 2 heaviest moorings where we are belong to us and our mooring guy, everyone else has much lighter gear. We both want our boats to survive another event like Hurricane Bob, everyone else seems to either feel that it is only a problem rarely or that moorings are just another expense to be minimized.

Eric

Arne Mogstad

Hey, so thanks a ton both John and Eric! I have fine read this article and what both of you have written now embarrassingly many times… but this is (as you guys are mentioning too), a subject that I feel is hard to get “healthy” information on. I just don’t trust most of what I read on forums (except maybe those that was too poorly designed), and the same with suppliers of gear etc, as none of them seem to take any responsibility of anything they “advice”.

Well, you mention winds of 60 knots…. that’s a bit of wind. Problem is, you can keep the number, but change the unit to m/s and we’re talking about right for somewhat of an average winter blow. People might start putting the brakes on the baby-stroller when the kid is sleeping alone outside…… I’m not sure we have very extreme weather here compared to other places, but I’m pretty sure that the weather we have on a normal basis, is quite hefty by most standards, and sustained winds of 30 to 40 m/s happens many times a year. My point is, I need something that I KNOW can withstand heavy weather on a regular basis, because I know it will come many times a year.

So John, I would very much like some specifics on pendants and arrangement (or where I can find it if you have written about it already? I have read through so much lately that I can’t remember where and if I’ve seen it.) I feel that if I, to a large extent, copy your setup, my boat with half the displacement will be quite safe, and I can maybe even downsize a little.

Eric, could you give any numbers for what you ended up with as your mooring? (And you boat size?)

And what are the specifics at the top of the riser regarding attachments of the pendant and so on?

I feel science and engineering will get me so far, but real life proof is at least as good to keep me asleep! 🙂

Just to give an idea of what my initial plans was/is:

I plan on putting the boat on a spot that is 10 meter deep, and there will be 100 meters free radius in the 2 “worst” directions.

Depending a bit on what I can have lifted, 2 or 3 blocks of concrete totaling a weight of 3-4 ton. Attached at a middle point (as opposed to what you did John) since I have two opposing directions of weather and fetch (think fjord).

20 meter of bottom chain 25 mm (about 1 inch). Connected to a riser that I have not decided on yet, but I’m thinking somewhere around 12 mm (1/2 inch), then a swivel, a buoy, pendant, and maybe non-stretch line on the boat to avoid chafe through the fairleads.

I realize the bottom chain should just be as substantial as possible. The riser can be whatever I feel safe with, but details regarding the rest I feel more iffy on…

Again thanks so much for great answers and also a truly great site! And congratulations and condolences on your boat John! 🙂

Eric Klem

Hi Arne,

I would be hesitant to use a combination of multiple mooring anchors that are intended to share the load because it is extremely difficult to actually get them to share the load reliably. Unless you are truly mooring on a smooth, hard, flat surface (not a good place for holding), then you will find that usually once a mooring block starts moving, its holding power is decreased. Imagine 2 blocks with a chain between them and your bottom chain coming off the middle of that chain. If the pull is in line with the blocks, the further away block will take all of the load until it has dragged to be even with the other block. At this point, it is no longer embedded so it will have significantly reduced holding power which is very dependent on the bottom but may be something like 50% of the original. So you end up with a holding power of only 75% of what you expected. The other issue is that as you veer, you will keep loading only one at a time so it is possible to now load the other one singly and get it moving and you could be down to 50% overall with the ability to slowly walk it further by uneven loading, not good. This is highly bottom and setup dependent but gives you an idea of the danger of failing to load equalize. The only time that I can understand multiple anchors is for a multi-point mooring because you are using several light anchors that are only reliable in a single direction of pull.

60 m/s is a whole lot of wind, I am not sure I could stomach keeping a boat on a mooring if that was expected on a normal basis. Do you mean this as peak wind instead of steady? Then the steady wind would likely be more in the range of 40-45 m/s (78-87 knots) which is a lot but something that should be survivable with an appropriate location and gear.

It sounds like you are worried about the ability to set so much weight (without running any numbers, the weight you have given looks light to me)? That can be really limiting and sometimes you need to hire equipment from further away to do it. Other times, you can still meet your requirements by changing your design. I am a big fan of properly sized granite blocks as they work in just about any substrate, the only difference being that in some they can actually sink in and generate more holding power (side note, Prock Marine in Maine actually digs a hole and drops the block in which I like too). Mushroom anchors can have very high holding and much lighter but it is a pretty rare seabed where they can actually sit vertical and fully buried, they usually just sit on their side with 1/3-1/2 of the bell buried generating fairly little holding power and likely oriented wrong for the load. For about 40 years, my parents had a daysailer on a mushroom that buried properly in the type of mud that was completely impossible to walk in but only 200′ away, there was enough sand in the mud that they won’t bury. For an application like this, I like the Dor-Mor pyramid but I don’t know if you can get something equivalent where you are. For both of those in the correct bottom, I am willing to go about 8X lighter than granite dry weight. The lightest of all is a helix that is screwed in but that takes special equipment which may or may not be available locally. The final thing that comes to mind is a multi-point mooring which can work in certain instances but take real knowledge and care to set up right. With any of these setups, I try to only lift it when it is not going to be tested by a storm soon, in our case that means lifting it out in the fall for inspection not the spring.

In our case, we are mooring a 36 foot average size and windage sloop that weighs in the 17-18,000 lb range dependent on tank levels. Our chosen design point was 60 knots sustained with some waves. Our setup is a 1000 lb Dor-mor, 30′ of 1-1/4″ mooring chain, 30′ of 5/8″ mooring chain, 12′ of 7/8″ Novabraid double braid nylon strop hitched to 6′ of 3/4″ Amsteel for a primary pendant and 22′ of 3/4″ Amsteel for a backup pendant. We have a buoy where the chain comes through it and there is a shackle on top. We run a large enough shackle that 2 thimbles fit side by side with the 2 pendants. The pendants are lashed together every ~2′ with a little slack built in on the backup pendant so that it never takes the load. There are several floats along the pendants which prevent them from wrapping under the mooring ball which will rapidly chafe them. There was some amount of rounding up here as the calculated sizes often fall between real sizes. I am sure that improvements are possible but I am comfortable with the sizing and while it may be a little on the conservative side, I don’t think it is unreasonably so.

By the way, I would definitely recommend following local regulations and also seeing what other people are doing and what weather it is capable of surviving. I would also recommend going and figuring out what the bottom is where you want to moor, if you have an anchor which tends to bring up a lot of bottom, just set it hard a dozen times and see what comes up on it. In my case, I always pay attention to the local papers which love to cover boats breaking free and I sometimes go take a peek as to why. I also created a spreadsheet of all the local town regulations and paid particular attention to places which have a lot of fetch like South Dartmouth, MA, Mattapoisett, MA, Rockland, ME and Belfast, ME.

Eric

Eric Klem

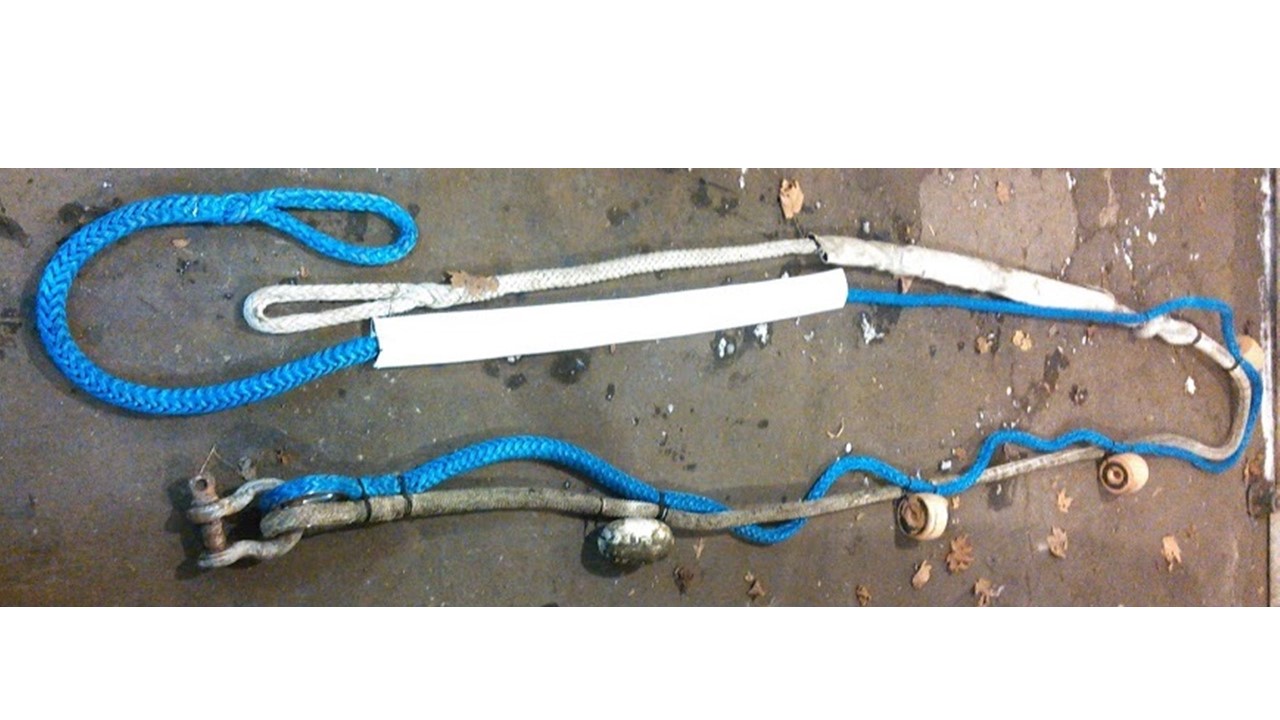

Here is a crummy picture of our pendant setup (while I share the same love of sailing as John, this should make it clear that my interest and skill level in photography is not there, this was taken with a cell phone several years ago that had a pretty bad camera). As you can see, this is not when the pendants were brand new but it gives you an idea of what they are. We replace the nylon sections after 5 years with 5 months of usage each year or after a big storm and the dyneema sections at 10.
