Whilst the rest of Northern Europe has been enduring yet another ghastly summer with high winds and inundations, the Western Isles of Scotland have had a memorably warm and sunny season, with long spells of light winds. And as a result we’ve used our new asymmetric spinnaker on a regular basis.
You either love or hate spinnakers. After years of racing I’m as familiar as most sailors with them, and have endured my fair share of wild broaches whilst under them, so I’m under no illusions that they can bite back when used in the wrong circumstances. But when conditions are right, they are invaluable, and some of the most memorable days I’ve enjoyed out on the water have been under spinnaker.
When we were planning Pèlerin I was very much in favour of carrying a standard symmetrical spinnaker for running, plus an asymmetrical for reaching. On our old boat we carried a narrow shouldered radial head cruising spinnaker, which I loved for its stability and ease of handling, especially once we replaced the original snuffer with an excellent Hood one. Once it was up it could be sheeted off and pretty much left at that, which made it ideal for short handed cruising. But Lou viewed the thing with apprehension, balking at the paraphernalia of spinnaker handling—uphauls, guys, poles and so on—and ultimately believed that the act of hoisting a spinnaker brought either unexpected wind shifts or expected expletives! And whilst snuffers are a huge improvement over what went before them, they can still snarl up when most needed, which didn’t endear them to her either.
We looked at the German made Parasailor, about which we’d heard many good things, but were put off by a very high price tag, so we eventually agreed upon an asymmetrical chute as a starting point. We ordered a standard factory made removable bowsprit to get the kite out into clear air ahead of the boat. Like all things OVNI, it’s simple, strong and effective.

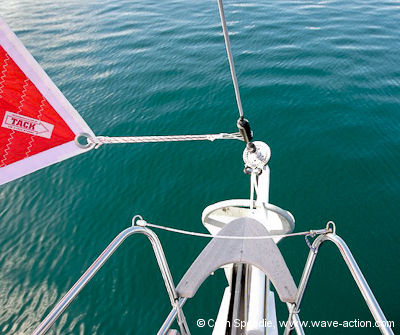

At the last London Boat Show we went shopping for a suitable sail, and finally opted for an asymmetrical cruising chute from a well-established British firm, Crusader Sails, mounted on one of their own furling gears. This simple unit is based on the Code 0 type furlers used on racing yachts, with a top swivel, Spectra luff rope and an endless line furling drum at deck level. The sail is hoisted wrapped around the luff rope, and then unfurled by pulling on the line in one direction, preferably with assistance from the sheet. To assist in making a neat furl, a light line is attached between the central point of the luff of the sail and the luff rope to start the furl from the middle of the sail, and to furl the furling line is pulled in the other direction as the sail is blanketed and the sheet is eased.
The furling line can be led all the way aft if preferred, but we opted to have ours shorter so that the sail can be set from the foredeck. In my view this has two advantages when two-handed sailing: The first being that the whole furling/unfurling process can be watched from deck to masthead as it happens, so that any snags can easily be observed, and the risk of a snarl-up reduced. The second is that tension needs to be kept on the furling line, especially when furling the sail, to stop the line slipping, and this seems more easily achieved when you are close to the drum. It does take a little getting used to, but once you’ve got the knack of it, it’s by far the easiest way of handling a sail like this that I’ve yet encountered, at least for an asymmetrical sail. An additional advantage is that the sail and the furling gear can be stowed in a tight coil that takes up very little space.
The sail itself is a beauty, remarkably stable, and sets over a wider effective wind angle than expected—a true cruising sail in that it can be sheeted home and doesn’t need endless trimming. As a result it has seen plenty of use whenever the wind has been favourable.
We still only use spinnakers in light to moderate winds, which greatly reduces the risk of getting into a mess with one. But this new system certainly fits in with our sailing philosophy that “if a job’s easy—you’ll do it”, and has added another dimension to our cruising. And, if further evidence were needed as to why it might be worthwhile reconsidering your current setup, consider that now it is more likely to be Lou suggesting we hoist the chute.
Interesting idea to add a “furling helper” from the mid-point.
In the aps couple of years, the idea of top-down furling had emerged, and at the Annapolis boat show this week I noted that virtually all sailmakers now promote it.
We have a Karver furler for our code zero, that could easily be adapted for this alternative duty too.
What do readers think?
Colin,
We have an Ovni 435 and use the same system. It worked brilliantly until we got to Cape Verde and the high modulus line broke, just below the bottom Delrin “swivel”. The outer polyester sheath held up, so we didn’t loose anything. Crusader supplied us with a repair kit (a bit of a joke as it needed a 1m length of heat shrink and reduced the flexibility for packing). A year later, with little use, it happened again. I’m convinced that the sharp bend in the line combined with friction between the Delrin ”swivel” (just a cylinder of Delrin with a hole for the rope) and the rope could easily produce temperatures of 150c which could melt/weaken the HMPE core. Check your rope closely. The design is flawed and should have proper metal swivels top and bottom to prevent any friction and eliminate sharp angle rope bends. (We only used in <15kn app, furled by hand and never under load).
Hi Frank,
Thanks for the heads up on that. As you say, sounds like a flawed product.
Hi,
I have an OVNI 445 evolution – hull # 15
Appreciate your comments on an interesting article that I just read.
“https://www.cruisingworld.com/double-your-downwind-fun-two-jibs”
Looks like a novel approach.
Currently, we have an asymmetrical spinnaker that we are sorting out in preparation for its first (for us) use.
For downwind runs we fly two headsails, Genoa and staysail. We have two spinnaker poles, one is stored on the mast, I’ll call this pole A, the other pole is telescopic and it is stored on the deck, – pole B. What is your preference for attaching the telescopic pole – B to the mast, I am currently considering adding a mast bracket to pole A and attaching pole B to this bracket.
Appreciate your comments
Hi Pat,
I really don’t have much to contribute on this one since I’m not a fan of this level of complication and added gear—added leads, poles, lifts, downhauls, etc. (See Bill’s cats cradle comment.)
I also really don’t like the idea of having to change jibs on a foil to go downwind and then again when going up wind.
My experience is that a high cut jib on a pole working with the main is great once the wind gets over about 15 knots true and below that the best option is either motor or an asymmetric spinnaker, which will have far more area than the twin jibs and work better when tacking downwind. An asymmetric set in a good quality (ATN type) sleeve is easy to set or douse by two people, even on a larger boat like ours.
If it were me, I would ditch the second pole and buy a good asymmetric or code 0 type sail.
Hi Pat
We have the same 2 poles, one one mast, the other on deck. The deck mounted pole has its own “sled” with socket for the pole end already mounted on the mast track, below the sled for the mast-mounted pole. This means that the mast mounted pole must be deployed first, then the deck mounted pole can be deployed. This does mean an absolute cats cradle of lines, for each pole: sled up- and downhaul, pole uphaul, fore- and after guys, and of course halyard. But once they are up, things are relatively easy to control.
Yours aye,
Bill
Hi Pat and John
A small addition to my comment. We set 2 small(er) high cut, just overlapping foresails rather than a spinnaker/gennaker etc. One is on a furler, the other hanked on to a demountable inner forestay, parallel to and about 40 cm behind. Well balanced, and easily reduced. It takes me about 20 minutes to get everything up and running satisfactorily, and although I guess that this will reduce with practice, it’s really a setup for tradewind sailing. The main is dropped under this rig, but a friend has suggested setting the main dead amidships with 3 reefs can help with rolling.
Yours aye
Bill
Hi Bill,
Sounds much like the twin spinnakers that were so popular for trade wind sailing back in the day after world war II. A lot to like about the rig once you get it set.
That said, a lot of the reason that people like the Smeatons and the Pyes (who I sailed with as a boy) favoured twins was because it was the only way at the time to get a break from manual steering.
These days, with good vane gear and autopilots available, I prefer the simplicity and fast deployment of main and poled jib. Also quicker to get rid of in an emergency like a POB. And then for light air, where twin jibs will suffer due to lack of area, I find an asymmetric better—there are few things more uncomfortable than being under canvased when sailing downwind in swell.
As to a centered mainsail. I have heard that suggested a lot, but can you imagine the slatting back and forth with the roll on each wave? Hard on the sail and the nerves!
Hi John
Last word from me on this. ?
Kinsa is tiller steered, and the only halfway effective autopilot is the biggest Raymarine. This cannot cope with following seas of any size, and our preventer has saved us from some nasty gybes when trying it out. The Windpilot is equally not so good direct down wind. Stowing the main and using twin foresails has solved the problem for us. I agree with your comment that the slatting of a deep-reefed main set as an anti-roll measure would drive me insane. A possible alternative would be the trysail set, with both sheets hard to the toerail. What do you think?
Yours aye,
Bill
Hi Bill,
Makes sense.
As to the trysail, no matter how flat, it’s still going to be subjected to a wind load that oscillates from one side to the other on every roll, which will be hard on the gear, particularly the luff slides and their attachments. Also, I have just never found rolling while sailing downwind that much of a problem to live with. Sure it’s a bit of a disconcerting at first, but after a while we always get used to it.
Given that, I simply would not bother with any of these anti roll measures.
Commenting on this post in reply to Mark Wilson’s questions about rigging a Code 0, in a tip that doesn’t allow photos.
We have run Doyle (Stratis) Code O for 10 years now with numerous offshore and coastal passages. It gets used so much, our 135% genoa lives in the loft at home replaced permanently by a 100% jib.
It is set up on an endless-furler like Colin’s in the article above, but a tapered Dyneema luff rope runs inside the luff of the sail, to a swivel at the head. It uses Doyle’s hi-modulus Stratis cloth, for low stretch and greater stability. Newer Doyle Code 0 sails have a structured luff and no luff rope.
We now have a “Sumrella” UV strip on the leech, so the sail only comes off the bow when cruising if gales are forecast.
The foot is 165% with a high cut clew and is sheeted well aft near the winches in our aft cockpit. On the wind (we can sail as high as 35 degrees apparent in under 12 knots) with the Dyneema halyard cranked on bar tight, we sheet in hard, bring the boom in to the centre line and twist off the main at the head. This configuration may not be possible with a nylon sail.
Off the wind we ease the halyard and the sheets, which run through low friction rings on tweakers, which bring the sheet leads forward and down, for greater stability and lift especially in 25 knots plus. The most we have run the sail in this mode is 25->30 knots TWS.
Furling is achieved off the wind (except in light airs) running deep so the Code 0 is blanketed behind the mainsail. We have a dedicated furling winch for our endless furling line, meaning the sheet winches can be used to control the sheet for a nice tight furl. At the back of the boat, the furling line runs through a low friction ring with a bungie cord attached, clipped to the stern thus acting as a self-tailer for the winch.
We run our sheets for an inside gybe / tack, meaning we furl the sail and then re-deploy on the other side. With a bigger crew, or if we raced, we could rig for an outside gybe, but your sheets need to be very long. We use 10mm Dyneema sheets for strength (when the Code 0 first deploys in 25 knots +), and for low weight in light airs.
High luff tension is key to enabling the Code 0 upwind performance (the luff needs to be as straight as you can get it). But halyard ease (up to 1/2 metre) is key to off-wind sailing at deeper angles – we can easily sail down to 155 apparent, with the luff projecting to windward of the forestay by about 1/2 to 1 metre. In fine weather we also sail wing-on-wing if needed, with the Code-0 set to windward on our long spinnaker pole.
Our masthead spinnaker halyard attachment point has been strengthened and we run 75mm, 7 tonne BS Harken big-boat racing blocks for the halyard and sheets.

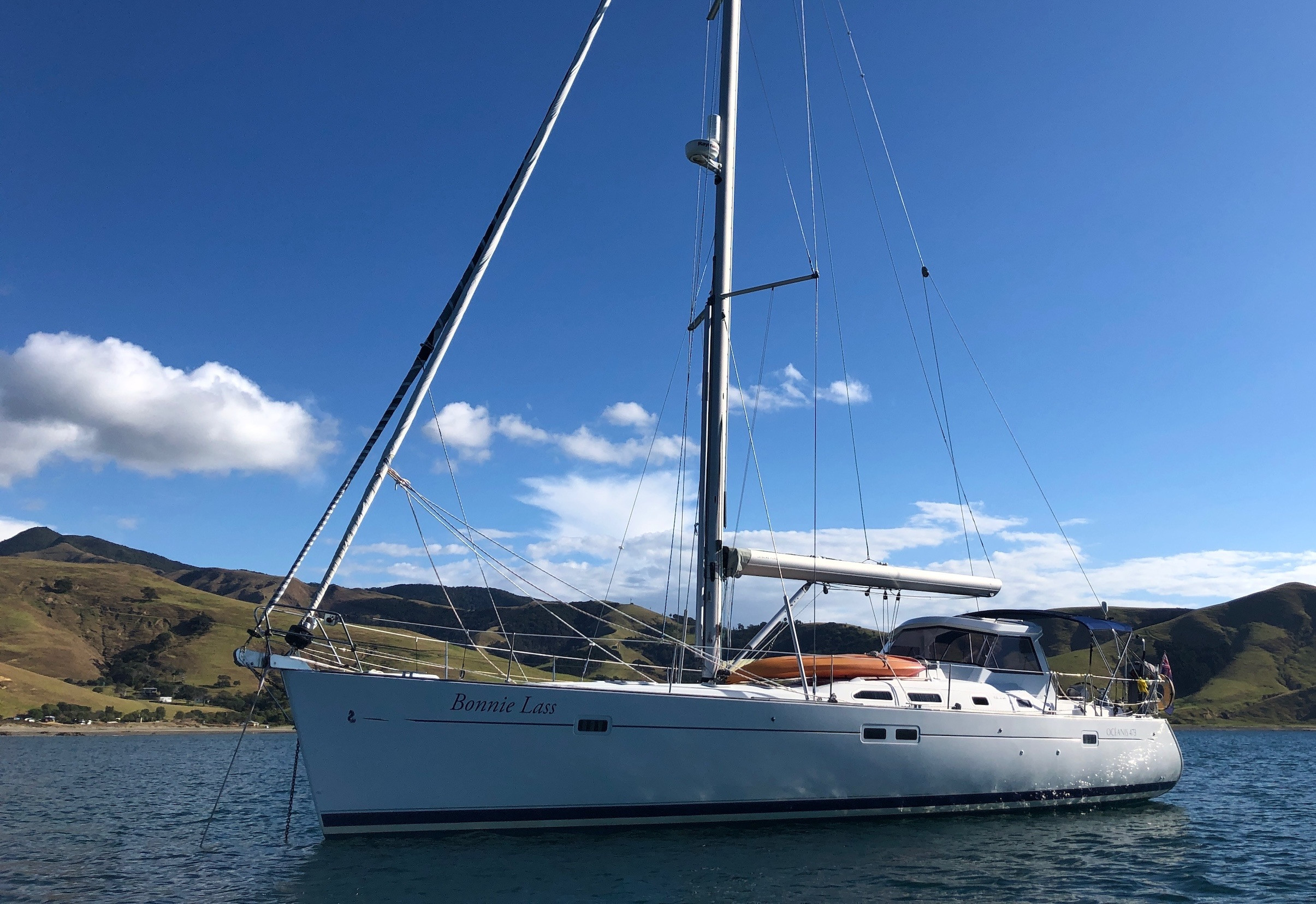

Photo shows the Code 0 furled when cruising and the furling unit on the bow.
If you intend to use the sail in stronger winds, the tack attachment point will need to be strong and likely supported by a bob-stay, as there is a lot of upward force, especially in upwind mode.

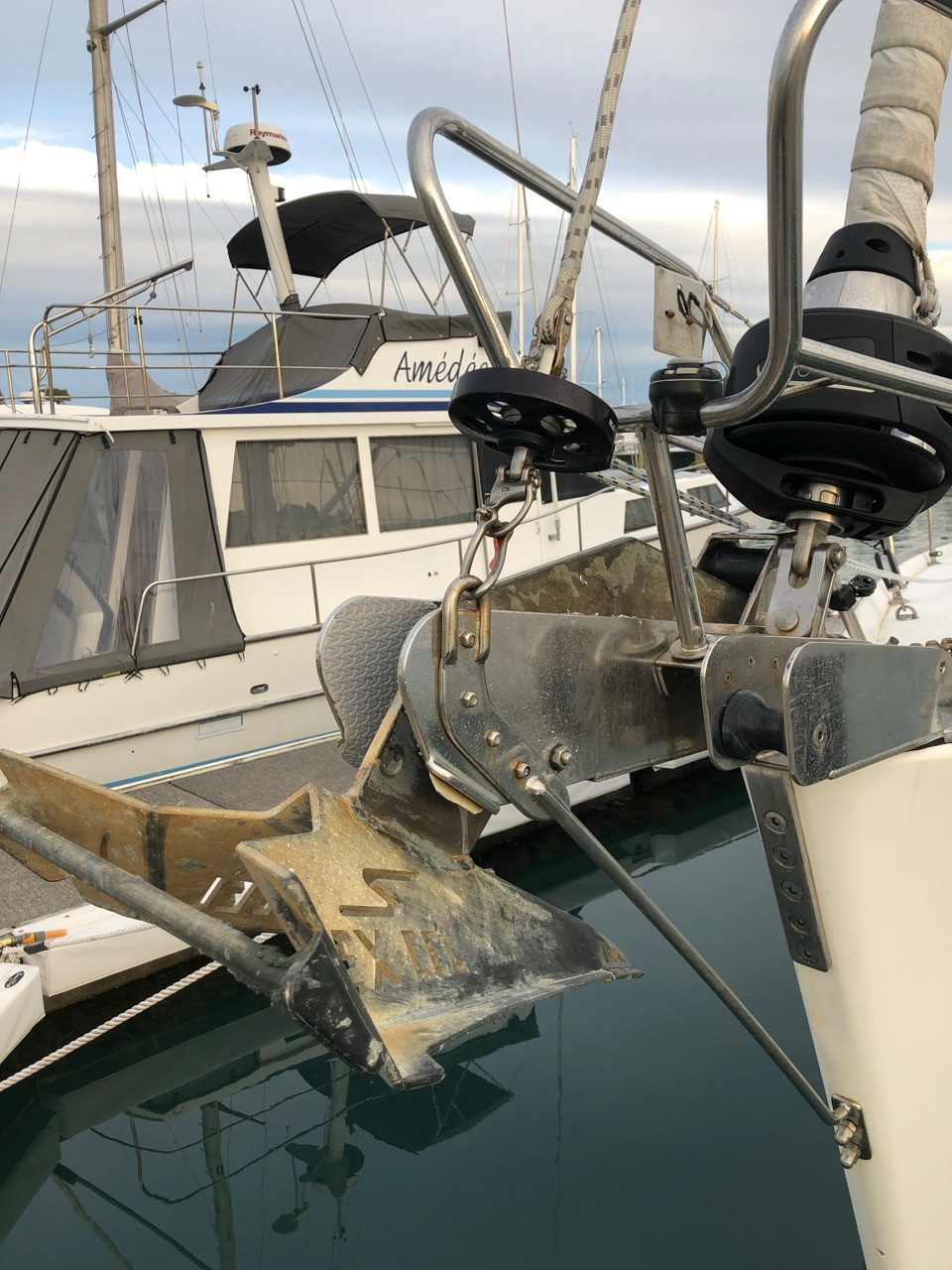

The tack attachment point also needs to be projected far enough forward and upwards for the tack to clear the push pit. This picture shows our specially strengthened and lengthened bow roller. Next season we hope to be sporting a longer and higher bowsprit for more clearance from the forestay / pulpit, and slightly more projection.
Thanks Rob, this is great and rings lots of bells. Some of the things you recommend I have been instinctively doing while not being sure whether they were right. So much is by guess and by God. I will reply now even through my brain is slightly addled – I have just returned from playing cricket against an English public school XI coached by a former England test fast bowler. Their oldest player was 52 years younger than me. Much as one would like one can’t beat time.
But two points stand out from your post. One is the highness of the wind strengths that you are continuing to fly the sail – up to 10 knots above the speed recommended by a North Sails Youtube video I have watched – and the fact that you keep the sail semi permanently rigged.
I have noticed that I can carry the sail reasonably comfortably up to about 23 knots but I always chide myself that we would be doing just as well with our large low-ish cut Yankee. The sweet spot for the Code O seems to be between 6 and 12 knots.
If I leave the Code O up and furled it has a habit of trying to partially unfurl when the wind gets fresh. This may be because the continuous furling line only comes aft as far as the midships mooring cleat so it’s not possible to play the sheet to get a tight furl. Though I have a short removable bowsprit extending through the port side anchor roller the furled sail does tend to slap against the furled Yankee in port and I am loth to leave the boat when its rigged.
But this is invaluable advice. My question was partially inspired by being quizzed by a fellow cruiser I was tied up next to in Corfu Town. An Aussie, he had just taken delivery of a brand new Bali 4.2 and was struggling to find someone to instruct him in the deployment of his Code O. It was his first boat – a brave man. His questions inspired me to give my Code O another try and I had two exhilarating day sails down to Preveza, Code O all the way. But I am not sure I will by flying it at night any time soon !
Hi Mark, hope you got some runs on the board!
Broad reaching in waves and 25+ knots we are surfing at a steady 13->15 knots, so the apparent wind is really not that much. And being able to furl the Code 0 behind the mainsail from the cockpit at any time, gives us confidence to push a little more than we would with an A-sail. Single handed, the most I have carried the Code 0 is 20 knots off the wind.
Keeping sheet pressure on when furling is the key to avoiding unfurling, with tight, even rolls up the whole luff. In light winds we can furl directly upwind using the engine to keep the sail streaming aft. If you don’t get an even luff furl, then sail pockets can form up the luff which will indeed get bigger if the wind gets up as you have probably experienced.
When furled, we usually take a few extra turns of the furler creating several wraps of the sheet around the sail, and tie off the furling line on the furling winch.
On the few occasions we don’t get a nice even tight furl, we will drop the sail on deck rolled up and stow it in it’s tube bag, then wait for fine weather to re-hoist.
The picture of the furled Code 0 was taken in fine weather, and the spinnaker halyard was quite slack. If we had tightened it there would be an even gap all the way up the luff and no slapping against the jib/forestay even in quite strong winds. We mainly take it down to stop us sailing around at anchor, as the wind gets stronger.
Thanks Rob. I obviously need to get splicing a longer continuous line that will reach back to the cockpit. And the tip about running the engine to furl the sail in light airs had never occurred to me but now seems so obvious.
To answer your question, promoted to number 3 and a first half century this century !
Hi Mark, haha, good batting!
A note of caution about splicing your furling line. Double braid is favoured for the furling line application as it grips the drum well and doesn’t slip. But double-braid splices have a habit of flattening and widening out under load and over time. This means they can become jammed up in your furling drum, leaving you with a half-furled Code 0 – don’t ask how I know this : )
So I wouldn’t add to the line; rather I would replace, minimising the number of splices. And unless you are expert at splicing double braid, I would get it done by an experienced rigger and explain that the rope diameter needs to stay fairly constant even after much use, and under load. We have had no issues since our furling line and splice were replaced five years ago.
Hi Rob,
Thanks for the fill on that.
