In Part 1 I wrote about how to decide whether, with an onshore wind, to depart from a dock in reverse or forward and concluded that, in most cases, forward was safer.
So let’s look at how we rig up and then handle the lines so everyone ends the manoeuvre with the same number of fingers they started it with.
I’m assuming that we are snugly alongside starboard side-to with bow, stern, and two spring lines on.
I am always nervous about slipping lines around bollards, in large part because on many of the docks around here, they’ll run 2″x6″ deck boards right up to the edge without a facing board. So you’ve got a whole row of nice 3/8″ slots, with exposed end grain, just begging to snag a free-running line. As long as there’s a smooth path for the line to run, though, I guess it’s OK?
I tried sketching up the forces and vectors involved and quickly realized that simulating / predicting this accurately, in the general case, is just not going to happen once wind and current enter the picture. You can get a general rough idea by drawing force arrows in the direction of the propeller thrust, the springline, and the wind, treating the fender as a fixed pivot point. But the only way to know what’ll happen, for any given boat, is to try it in the real world. Dock, undock, over and over, on some quiet day when the fuel dock attendant is bored and nobody’s in queue. Try it port-side-to, starboard-side-to, with the wind in different directions. See what works and what has you just pitting propeller against springline without any motion.
Hi Matt,
I hear you on that set up and we see it a lot in Atlantic Canada too. That said as long as the line is run the right way as I diagramed above I have never had a problem and you should see some of the gnarly commercial wharfs with decades old lumber full of grain that we have used.
I think the secret (aside from line direction) is that we are letting the boat pull the line through as she moves forward so a quite high steady force is being applied. Where I have seen people getting trouble is when the deck hand tries to retrieve the line by hand before it drops in the water, where even the slightest snag produces highly alarming resistance and a panicked deck had yelling that the line has jammed, when in reality it has not. Still always good to be ready to slip the other end.
And thanks for trying the vectors. Seems like trial and error is the way to go.
Hi John and Matt,
With regards to thrust required, I see 2 factors worth considering when the wind is from the beam pushing you on.
Realistically in the real world, I doubt that you can change it all that much. It takes huge fenders or a lot of shape aft to be able to move the fenders more than a small amount.
To your graphic of the dashed line, you are right that with the geometry you have drawn, angling that line will require less engine thrust to get off. However, if you move the line to the other side of the fender, any angle will make it harder to spring out. On boats with reverse transoms, it can be tricky to get the fairlead for the dockline aft of the fender. I had honestly always just said to make it as parallel as possible as I hadn’t thought about this in a while but you are right that with certain geometries, having angle has some (small) benefit but as a default, parallel is likely best.
Eric
Hi Eric,
Thanks for that, all makes sense.
I have never had a really wide stern boat but I’m thinking that the bottom line is that for those that do a reverse departure may be the only viable option in most cases. That or the sprongging option, but I have not tried that and have some reservations about it in really strong winds. I also wonder about how one is going to realistically fender many stern configurations.
Hi John,
Sorry if I wasn’t clear. It is generally easier to spring the bow out on a beamy boat because your lever arm increases in length as it is the lateral offset between the prop and the pivot point (fender). All other things being equal, a wide boat that carries its beam aft is the easiest to spring the bow out on as it takes less prop thrust and you need less angle to get the boat the same amount off the dock assuming your stern doesn’t hit the boat behind you as it swings out. If you had an infinitely narrow boat, then you could not spring off at all if your spring line came in at the same point as your fender, the only way would be to have it come in behind the fender at an angle as drawn in your dashed line drawing and that would require quite a bit of thrust.
I had never heard of or seen spronging off before these comments (and very rarely see springing off and I am not sure I have ever seen anyone else spring the bow out first) so I had to draw out the freebody diagram on that. I think your comment to Matt on beam mattering is right. In a narrow boat, the thrust from the prop and the dockline can end up almost in line meaning that you get no movement. The fore and aft relationship of the line attachment and prop/rudder do matter too here.
Eric
Hi Eric,
That’s makes sense and clarified my thinking, particularly your point about an infinitely narrow boat.
So that makes me think that a wide boat with a wide stern may be a better case than I thought. And that in turn has brought back a distant memory of when I was skippering a 50 foot catamaran head boat which was cursed with a 40hp outboard with a high speed prop on a bracket on centre line, but even with that terrible set up we were still able the spring off against strong winds and go out forward by putting a very large fender just a few feet (maybe 4′) forward of the stern and pivoting on that.
Hi John,
Boy, that boat sounds not fun to maneuver. Maybe slightly better than the tiki bars that are popping up around here, basically a big square dock with a bar in the middle and an ~50hp outboard on one side, they really go sideways in a breeze.
But the actual important thing is that with an outboard, you can vector your thrust and you can actually help yourself or hurt yourself when doing it and most people’s natural reaction will actually hurt you. The goal is to generate torque about the pivot (fender) and torque is R X F (radius cross force). One key is the cross which is only equal to times when R and F are perpendicular, otherwise it is less so the goal is to vector your thrust to get them perpendicular. If we take a boat where the engine and fender are equal fore and aft, you want the thrust to be fore and aft when springing out. Of course, the temptation is to turn the outboard to vector thrust as if you were not against a dock but when you introducer the pivot point, vectoring the thrust in this way actually hurts you as a lot of that thrust just goes into compressing the fender and nothing productive. On a boat where the engine is ahead of the fender longitudinally, you can actually get to the point where you generate no torque at all (this happens when the thrust points at the fender). With an inboard, you don’t have to worry about any of this as you can’t really vector thrust in reverse but prop wash will mean that there is a better and a worse side which is dependent on relative location of the prop and the fender.
Eric
Hi Eric,
Yup, that boat was a challenge. At least as you said, we could move the outboard. Had a separate wheel for that and then a huge cross bar tiller for the rudders. Fun part was I could not reach one from another so there was a lot of running about. Add in 40 tourists full of rum punch milling about and it was a real show. Things you do as a 22 year old sailmaker desperate for money.
The saving grace I had a really good mate. Should have been skipper, knew the boat way better than I did, but he did not want to take the test. I would have been truly lost without him.
At least I never emulated what my predecessor did: turn her over with tourists aboard! Miracle no one was killed.
And good point about outboards. I always have to think a bunch when I handle an outboard again.
Hi Matt,
I was thinking about your worry about the gaps in the dock boards more last might and came to the conclusion that I was too dismissive of the problem in my first comment. That said, I can’t say I have a good solution, other than to be always ready to drop the dead end if something does snag, and come back for the line in the dinghy.
John,
We use the Ares inflatable fenders as our primary fenders. They seem to be as sturdy as most of the vinyl ones from Taylor, Polyform and such, and are much easier to stow when deflated. Three or four 10 inch diameter fenders take up a lot of room on a 36′ boat.
I’ve found 3 sources, Life Raft and Survival Equipment (LRSE. com), Fisheries Supply (FisheriesSuply.com) and the manufacturer (Ares).
Dave
Hi David,
Great information, thanks.
John
Hi John and Dave,
I believe it
is Aere inflatable rather than Ares and we have used 4 of them for well over a
decade as secondary fenders. We have had one leak which we were unable to fix
and replaced the fender. We use soft fuzzy covers as which is nice in general,
particularly as they are often used between boats when rafting (my take is that
many boats do not have adequate fenders so I augment).
My take is different from Dave’s as I experience them as not nearly so robust as the thick-walled Taylor type which go between Alchemy and gnarly wharfs and concrete piers.
Ours are often inflated all season (mine is a 40-foot boat) as they have a place on the foredeck (where those with inflatables often store their dinghy). They are quite handy when it is necessary to have a portable fender (when another boat is maneuvering close by) as they are very light and can be moved around easily by any crew.
The lightness can be a liability in heavier winds as they can blow horizontal and get caught on the deck or above the topsides. Once every season or two, I tie my bagged lead dive weights to the bottom ring (Aere fenders have rings at both ends to facilitate use as a fender board) to keep the fender better behaved.
My best, Dick Stevenson, s/v Alchemy
Hi Dick,
Thanks very much for the tips, very useful and obviously based on long usage and wide experence.
I’m always looking for excuses to use what I call the slip-hitch(bight around something-bight from bitter end through that bight-pull standing end tight, so that holds until one yanks the bitter side and it comes off without the need for the end to pull around) I use it most often to tie the jib sheets to the bow pulpit when I want them out of the way at anchor, but I can pull them free from the cockpit.
In this scenario there is, I’d guess, enough load to make it hard to release, but if it worked (there’s the issue!), it would be slick, as it’d immediately be off the dock with most of it on board. And the crew never needs to touch a line that is ever loaded.
Another thing, I can’t recall what those boards that float over the edge of the dock are called, but in that case I’d say that standing end on top would be key. That end would run upwards to the boat in most cases, and if it were led under the bitter end could get punched by the standing. Which side is on top should be considered for all configurations I suppose.
Hi Michael,
The slip hitch is interesting, but as you say not sure how it would work under load. Also, if the end is long enough for the crew to pull it from the boat how would that be different than just wrapping it around and taking the end back to the boat cleat? Or am I missing something?
As to which end is on top, surely if we route the line as I show it, there is no on top?
With a slip hitch, it is only a bight that goes around whatever the object is, so the moment the crew uses the end to release it, they are holding a line that runs slack into the water up to near the previously used cleat, turns and comes back to the boat cleat. The crew can immediately start pulling in the end they are holding, shortening the bight.
Btw I also used to rig spinnaker sheets so they were tied to the stern pulpit on some race boats so they would stay tight against the stanchions even when in the water. Before the Windward Mark I’d pull them free.
I thought I got lucky and caught a mistake when you said CW around when starboard side to, since you didn’t stipulate that the bitter end must be under, but then I saw that the stern had passed the cleat so it didn’t signify. I wiped off the drool and kept reading.
Hi Michael,
I like the idea. How about a pic of what you have in mind? What I know as a slip hitch is simply a clove hitch with a loop passed through the last half hitch and that would make things worse since it leaves the line around the bollard one and a half times and so with the bitter end crossed over the the standing part, which is all going to make a jam more, not less, likely.

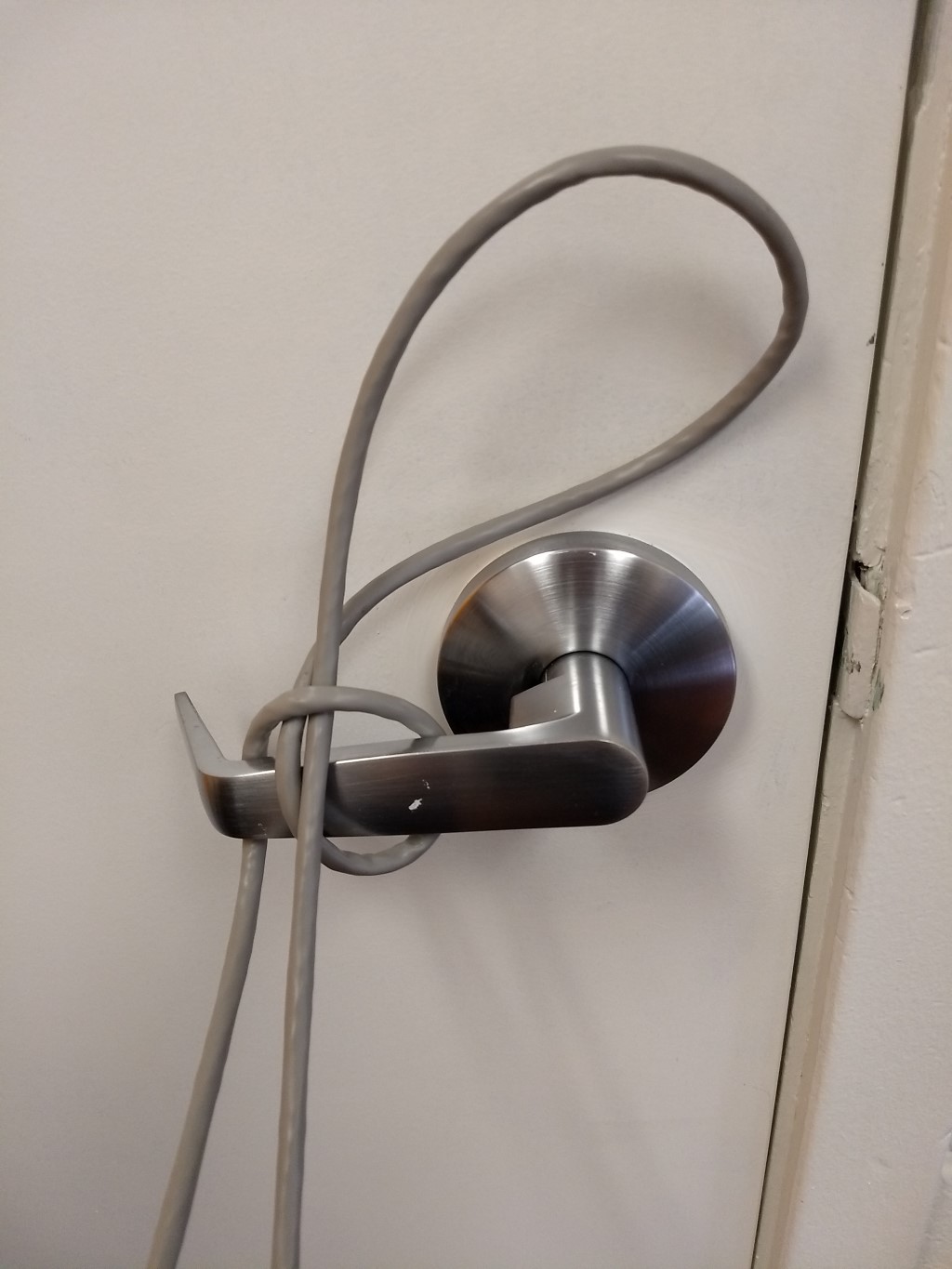

Is this what you have in mind?
Load up the left side all you like. Then, to release, haul on the right side and it pops off without needing to pull the whole line around whatever you’re tied to. I see this done frequently on very small boats (<20ft), often with the release line pulled through the loop an extra time or two to make a chain. I have not tried it on anything larger, where the lines might be under serious tension.
That is correct Matt, but with line you can tie it in such a way that it’s less apt to collapse. Another situation is getting in the dink, I’ll switch to slip hitch, then if the motor starts I can just yank it free and off I go.
I wonder if there is a way to use a tapered fid tied to the pulling end with a butterfly knot or something to make it usable under more strain.
Hi Matt and Michael,
Interesting but I can’t see that being reliable under any sort of load and that doubt would stop me from using it, because if it fails while going in reverse against it the consequences could be very nasty indeed, in a whole bunch of ways including smashing into the boat behind.
I wholeheartedly agree. But,
https://youtu.be/Po4adxJxqZk
I just tried this @home using my 80+ kg. The “simple” version rolled itself around and slipped approx at 10% of my body weight. Doubling the slip as suggested made it hold me reliably dangling in the air, but stubbornly refused to pull free – the bight would not slip through the round turn.
I see this knot perfectly placed for securing unused sheets to the lifelines as described above, but wouldn’t trust it for springing off – either it might let go, or it wouldn’t pull free when needed.
Hi Ernest,
Thanks very much for testing that. Settles it for me.
John, this guide specifies Starboard side tie, is that because of prop walk? Are you assuming right-hand rotation/Port prop walk or does prop walk direction not matter?
Hi David,
In the maneuver prop walk does not have a lot of effect, that is unless going out backward as I cover in part 1. For a forward departure I have never found a noticeable difference between port and starboard to, other than the bail out option 2 that I cover in Part 1.
Great details much appreciated. After reading part 1, it turned out I had to experiment such dock leaving situation 5 days ago with 20 knots wind and 1 knot current pushing under the dock. This, before part 2 was out. Had to re-read, and explain to the crew what we will be doing. They were not keen on leaving forward as this was leading to a dead end about 4/5 boat length forward. Everything went well after the 2nd tentative. We had to move the fenders much more backward than expected and not be shy on the rev.
Hi Philippe,
Great to hear it worked for you. And I totally hear you on fender positioning in that I’m always surprised by how far aft the optimal point is too.
Hi John,
With regards to fenders, this is a situation where maximum friction is good to keep them from popping out as the angle increases between the boat and dock. I have found that some fender covers intended to protect topsides make them very slippery against the topsides which is not good for this. I have not tried the stowable inflatable type that you mention so I can’t speak to how slippery or not they are.
Eric
Hi Eric,
That’s a good point, that I had not thought of. Probably a lot of why we had such good luck with the large spherical fenders we always used on our McCurdy and Rhodes. On the other hand also thinking that a cylinder shape may be better for some stern shapes since more would be in contact with the boat.
No simple answers here so I guess I come back to the best suggestion for most of us is to be open minded and try things until we find the combination that works best for our boat. For example, being open minded enough to remove the fender cover and try that if we were having trouble with the keeping the fender in place, and/or use a different shaped fender.
I bought 3 Aere fenders about 15 years ago when, I believe, they first came out. They seemed nice, easy to inflate and stored in a small space. My problem with them is they are forever loosing air and in need of topping off to keep them inflated.
About two year ago a French company, FenderTex, stated selling inflatable fenders in the US. They are a bit expensive, but are ruggedly built. I bought a pair of cylindrical fenders and a pair of spherical fenders.They are very rugged and pack into a very small space, much smaller than the Aere fenders. An added bonus is they can be washed in a washing machine! These fenders can be purchase at Fisheries Supply or PYI Inc. PYI is the importer, so they have more selections than Fisheries. There might be other resellers, but those are the two I know of.
I had trouble with the first set of cylindrical fenders leaking, so PYI sent me a new set. They also leaked and upon conversation with the manufacturer found that the valve was at fault. New bladders and valves were dispatched via the manufacturer, which were quite easy to replace. No problems since. They stay inflated with no need to top them off. PYI is now offering, via the manufacturer, replacement bladders with the new valves for all customers with that particular size of FenderTex fender. Both PYI and the manufacturer really stand behind these products. I can highly recommend them.
On another note, the manufacturer recommends putting water in the fenders as a way to weight them down if they are too light in wind. This seems to work quite well and is easier than hooking diving weights (or other heavy objects) on the fenders.
Hi Bruce,
Great report and just in time as I need to order at least one inflatable for our new boat. And better yet I have always had great results and service from PYI. Thanks.
John,
Glad to be of service. 🙂 Here’s the manufacturer’s website with lots of info:
https://fendertex.eu/gb/
Hi Bruce,
That is interesting information about FenderTex fenders: thanks for sharing. And PYI is a good outfit: I have dealt with them for decades for Max props/ zincs etc. and always felt well taken care of, so their standing by their product is not surprising.
In 5 Aere fenders over a lot of years (we would guess ~~2006-2010, but if they did not exist till 2015, that memory is subject to review) one had a very slow leak at a seam which we could not repair. None of the others ever needed attention. But we do use them as secondary fenders and subject them to the more easy-going jobs (rafting for ex).
And I only remember needing to top off the air maybe once a season or so, if that.
Putting water in the fender is an interesting idea. At first blush it sounds more difficult, messy, and time consuming than tying on a bagged lead pellet dive weight which takes but seconds (chosen as these will not mar the top sides if things get really boisterous).
My best, Dick Stevenson, s/v Alchemy
Dick,
I believe I purchased the Aere fenders between 2006 and 2007, about 15 years ago. Your memory is not suspect. 🙂
What a great article! I have been doing pretty much this for years. Just never gave it that much thought as to why it works, or how to do it better and no way could I have explained it like that. Brilliant.
Hi Ralph,
Thanks very much. Your comment makes all the work this kind of article takes feel worth while!
I have used Stowaway inflatable fenders satisfactorily for years, Tough, durable, easy to inflate, But …they make nothing big enough for this maneuver. On the other hand, if you want rugged cylindrical fenders to hang between a dock and a boat displacing less than Morgan’s Cloud, they work well and are very easy and fast to fill and deploy.
Hi Terence,
Thanks for the report. Practical sailor has a review here too: https://www.practical-sailor.com/sails-rigging-deckgear/inflatable-boat-fenders-test
Hi John,
I have had good luck, so far, with inflatable fenders from North Atlantic Inflatable Boats in Portland, ME. The fenders store compactly when deflated and inflate quickly with a foot dinghy pump. They are rugged and I don’t use the fuzzy covers on them. A round ball fender is the best for the maneuvers you are describing if you have the storage capacity.
Brian Guck
Thanks for this John. Last time I slipped a line like this (and I was very pleased with how seaman like I had set it all up) we watched with open-mouthed amazement as the release-end flicked itself around the bollard and tied itself into a perfect figure of eight. I recall bursting into laughter at the impossibility of it all.
Fortunately it was a very benign situation and nothing dramatic happened, but yes a plan to deal with this happening is needed.
Hi Philip,
Yes, I’m always amazed by the influence of Mr. Murphy on rope, and particularly around docks. Good to hear that no damage was done.
Hi Rajesh,
Sure, I have done exactly that, assuming I’m understanding you: leave the wharf in forward, get the bow well out, and then go hard astern and back out to complete the maneuver. Of course the danger here is is the bow hitting the boat on front as we go astern, so we need to be really familiar with what our particular boat will do when we go astern and take into account the prop walk.
The key point here is that as soon as we lose forward way after going in reverse, the bow will start to be blown off to leeward so this is a higher risk way to go than going out in forward and the danger to monitor. If we see that it’s going wrong and the bow will hit the boat in front as we back out, the best bet is to abort, sting her in forward with the helm over to bring the bow back out, and end up alongside the boat in front, but we have to recognize this early to pull off the save.
Bottom line on all of this is we need to practise enough that we know instinctively what our boat will do when we go in reverse and as we gather stern way. See other chapters for tips on that.
Hi Rajesh,
Read the preceding chapter for more on springing the stern out, and why you might not want to that.
Hey, John. So tried this method last week and as luck would have it, the line got a knot in it and I had to release it from the deck and throw it in the water (yes I made very sure that it was through the cleat in the right direction). And that word “through” was the key to the problem. Here in certain parts of the Nordics (not sure if you ran into this in Norway), someone decided that petite closed cleats was the way to go. Apart from all the other hassles these cleats cause (like making it really really really hard to moor single-handed for which I am trying to devise a system), springing off in this way is fraught with danger. The inside cleat height is just 3cm and my line is around 2cm so if a knot does occur (and don’t ask my why it did), you have absolutely no chance of getting the line through the cleat. I really want to meet this person who decided closed cleats was a good idea, but no one is owning up.
P.S. it didn’t help that the cleat was rusty in this instance either.
Hi Michael,
I’m not really sure what you mean by a closed cleat, but good to hear that you were able to throw off the boat end and nothing bad happened. And I agree, undersized cleats are a really bad idea and yet way too common.
Hi, John. What I mean to say is that the line has to go through the cleat on the dock not around it. So you have to take the end of the line (or the bight) and pass it through a hole. Its more like a elongated U bolt (i.e. so fixed at both ends to the dock). Or a cupboard handle if you like (not a boat cupboard but a normal kitchen cupboard). Hard to describe things isn’t it. Indeed, I managed to get out without any damage thanks to having read this article a dozen times in the last year. I was backed into a corner (literally) with my port side to, a finger pontoon 6 feet behind me, an old fishing boat (about the size of the one in your picture above) a foot away from my bow, and another yacht about 6 feet on my starboard but set at an angle away from me so there was a 18 foot gap between the pilon the bow of the yacht was tied to (it was backed into the pontoon) and the fishing boat. I had to get out through that gap (my boat is 12 feet wide). Sorry, too much detail but, as I said, even when things did go wrong, it was all under control thanks to your incredible detail (which sometimes drives me mad but is all worth it in the end).
Hi Michael,
Thanks for the fill, now I know what you mean. As you say, not a good idea, but just another reason to be sure we can let go the bitter end safely in a hurry!
Anyway, glad the post helped…and the exasperating detail. 🙂
Hi, John. I forgot to mention that I did devise a system for dealing with all the closed cleats I run into in a single-handed situation. I tie the magic line to one of those long hooks they use up here to pick up a stern buoy and I hook that through the closed cleat as I approach. The magic line is run back to the winch closest to me as you advise and I control the length of the line from there. Works pretty well although its lots of things happening at once so I usually give it too much forward power…but what else are the big round fenders for? I did once forget to tie the end of the magic line off to a cleat before going and dealing with the other lines and it came lose and well it was a scramble to get back on board before it was too late. But I did that only once 🙂
Hi Michael,
Thanks for the fill, and I’m glad you are making it work. I know what you mean about a lot happening at once!
