Building a Robust and Practical Hard Dodger

The Dodger We Had

When we bought Turnstone she had a canvas bimini enclosure that came down to a low-profile windshield. It was cleverly constructed and would fold away to have the cockpit completely open.

But it had several shortcomings:

  • The supports were right in front of the primary winches, thereby fouling the arc of operation.
  • We didn’t trust its strength when the wind really piped up.
  • The visibility was extremely limited.

What We Wanted

In our home waters of Alaska, if there’s enough wind to sail you can usually count on being cold. And much of our coastal region is a temperate rainforest so, like in Scotland, the driving rain can be rather uncomfortable—it’s not surprising that a true pilothouse is a common feature for many Alaska-based boats.

And, before heading back home, we plan to cruise in the eastern Arctic, including Norway, Iceland, and Greenland, and expect to encounter similarly cold and wet conditions.

So we decided we needed a tougher structure before heading north, plus we wanted to add solar panels and sturdy handles in the cockpit area.

Going The Whole Hog

I debated about whether to replace the existing bimini, but when we reached Scotland, where we planned to spend several months off the boat, and after being introduced to a competent local welder, I decided to start from scratch and build a new hard dodger.

A Chilly Work Location

We reached Scotland just before Christmas after sailing north from the Mediterranean. It was a blustery winter passage across the Irish Sea and we were happy to arrive at Corpach Marina, near Fort William, to start the project.

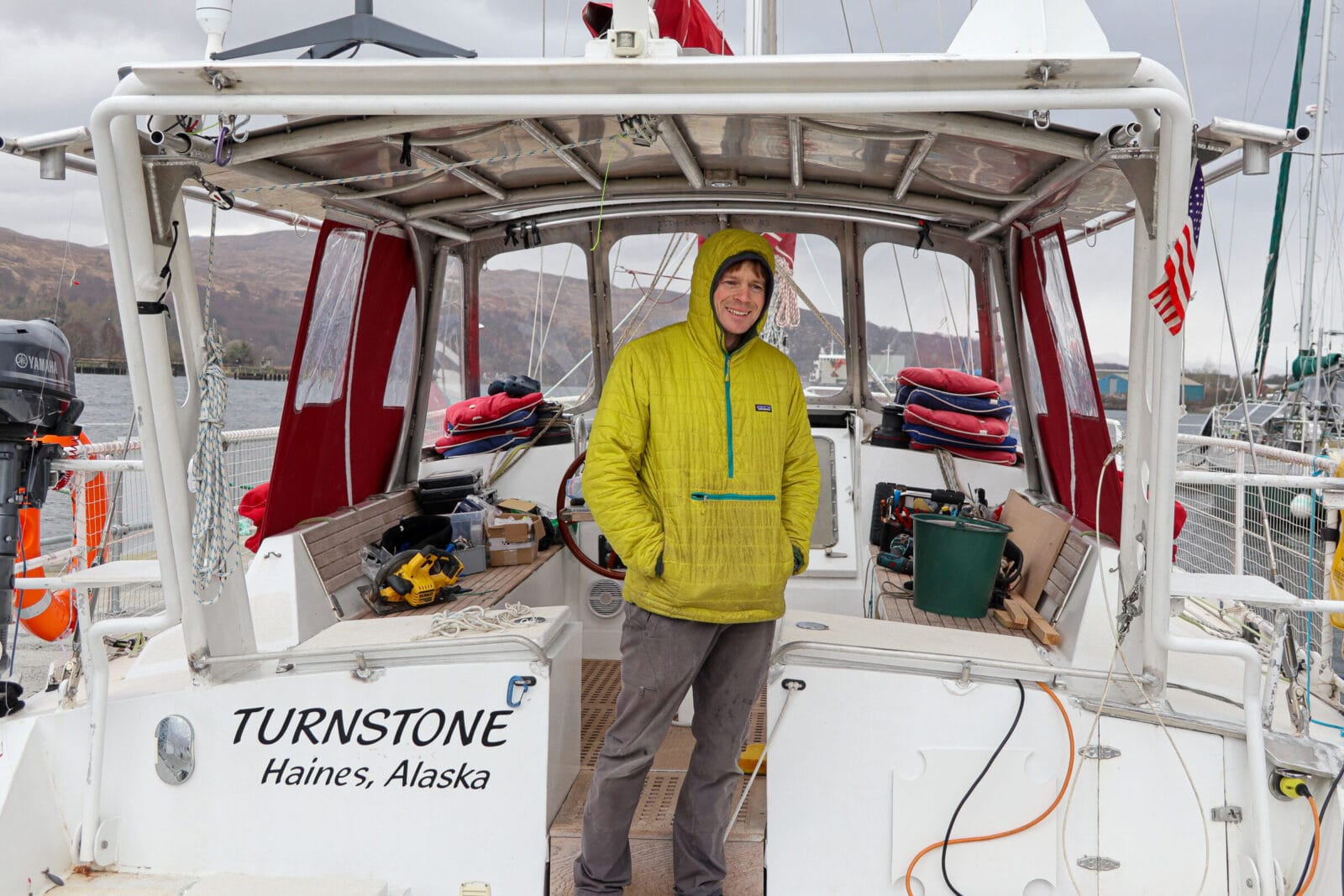

Though it was, unfortunately, often dark and raining or snowing, eventually the new dodger came together.

Here is an overview of the design and build process:


Login to continue reading (scroll down)

28 Comments
Oldest
Newest
Inline Feedbacks
View all comments
Andrew Kirkpatrick

I often wonder if such a big dodger affects the righting movement of a knocked-down boat? Not the weight, but the way it would act like a scoop? Would it also affect the speed of a boat in the wind?

John Harries
Matt Marsh

A dodger, almost by definition, is open at the sides and stern. It may have a slight roll damping effect while the boat is completely upside-down, but this will be very small compared to that of the mast. It shouldn’t entrap water in such a way that would inhibit the boat’s ability to self-right. Its main effect on stability will be its weight, above the deck, raising the centre of gravity and therefore reducing the righting arm.

A pilothouse, which is mostly or fully enclosed, is a different story. Here, you really do need to carefully consider the effect on inverted stability, both when the pilothouse is free to flood/drain and when it is sealed up tight.

Eric Klem

Hi Andrew,

On the stability issue. Most of the time people talk about stability, they look at it statically only and in that case, the upwards movement of the CG and the buoyancy (If there are closed volumes) of the dodger are the only thing that matters. Given that cockpit and dodger size do not scale linearly with boat size, this is an example where you can get away with more on bigger boats. I am incredibly pained every time I see someone building a hard dodger for a 30’er using 3/4″ plywood covered in many layers of glass, you have to be careful to be weight efficient here, especially on smaller boats.

However, if we look at it dynamically, it gets more complicated. If you are moving quickly forward and get knocked flat such as a broach in a breaking wave, the dodger traveling through the water will actually add righting moment. However, when the boat goes to right itself, the water trapped in the dodger will indeed hurt you. In both cases, the speed is important and the direction is too (forward speed can generate lift on the dodger whereas just roll makes it act mostly like a damper). If the boat is rolling extremely slowly, both effects are negligible but if it is fast, then they can be quite significant. Dinghy sailors will recognize that this is similar to when your sails hit the water. When capsizing quickly, the boat will suddenly kind of stabilize once the top of the mast hits the water and that is simply the drag on the sails and mast as it goes down through the water. Similarly, when righting, it goes quite slowly until the sails are out of the water then quite quick. In both cases, all it does is impact the speed of these actions but if there is something else like the next wave coming, it can impact the boats position to that which could matter.

These are all trade-offs. Given the helm forward layout of Patrick’s boat and where they cruise, the large dodger makes a lot of sense and I would think is definitely worth the tradeoffs. I suspect that moving the helming position aft to lower the dodger would have been just too much work for this boat but I think that is what would be required to lower the dodger. On the other hand, a high dodger like this would not be my choice for cruising in the areas we do especially with our helm aft, I suspect the performance hit would be too great for the added comfort. But the process followed by Patrick is an extremely practical one for DIY’ers. I am a huge hard dodger fan and occasionally think about doing it to our boat but we don’t need that level of robustness right now, the effort is too great and frankly it is hard to make one that looks decent.

Eric

Brian Russell

That’s a sturdy and stylish addition to a gorgeous boat, Patrick. I’m sure you will be smiling when the green water slaps that dodger and you stay snug and dry. As to a “performance” penalty? Everything on a boat is a compromise. The cost-benefit analysis for a hard dodger and a full enclosure, even if one is not in higher latitudes, tells me that without it, my partner is simply not going to be agreeable when I mention the Viking Route to her. Going a 1/4 knot slower wouldn’t even be part of the equation – we wouldn’t be going at all!
Quick question: You mentioned an ice pole, or tuk; where to source in Scotland? Did you buy something or DIY?
Here’s a link to my boatbuilding blog showing our hard dodger. Much simpler design, and much easier to build while the boat is next to the metalshop!
http://www.odysseyyachts.com/Odyssey_Yachts/BUILDING_BLOG/Entries/2016/1/15_Hard_Dodger.html

Brian on Helacious, currently at St Katharine’s Docks, London

Felicity Critchlow

We spent two winters at St Katharine’s dock. We loved it. Say hello to Gus and Helen on Wings. Alan Critchlow “Voila”

Brian Russell

I looked at some 1.25″OD x .125 or.188″ wall 6082 tubing, not too expensive. Great idea about the foam. Do you have a blog showing your route through/around Greenland? Or maybe that’s another article for AAC?!

Felicity Critchlow

We cheated, we bought a HR 352. An old Rassy, but the big draw was the hard windshield dodger. We have recently added a back drop canvas. It makes for a small enclosure for cold or inclement weather. We plan to cruise the lower St Lawrence this summer.

A buddy of mine, Jean Pierre, had a solid dodger made for his Chatam 10 meter. He sold the boat in Peru. Someone walked down the wharf and asked how much.JP bought an Amel and continued cruising.

Benjamin Glazer

Hi Felicity. As a fellow recent 352 owner, it was also a big draw for me. I am getting rid of the current bimini set-up and would be interested in how you incorporated your back drop canvas. We have the cockpit tent which came with it as well but that is really only practical when at harbor due to visibility and standing room height. Many HRs have a full hard dodger and roof so longer-term I am thinking about going that route. Great job Brian.

Dhara Thompson

Nice article Patrick, thank you. I replaced my canvas sprayhood with a fibreglass doghouse last year. I agree with and recommend the template idea. I made a few cardboard models first using architect drawings of my boat, a Standfast 40. This gave me a scale and helped me order the right amount of materials. I then made a real size template from 20cm thick cheapo foam which I could easily cut and carve to shape, look at from off the boat and make sure the winches could be used comfortably.

I then screwed 10mm high density foam onto the cheapo foam and glassed a layer of fibreglass over. Took it off the boat and removed the cheapo foam and screws and glassed the inside.

The whole thing has a 6 inch overlap of glass sheet holding it in place. The windows are polycarbonate which bends to shape amazingly well with a heat gun. I discovered though that when you cut polycarb you need to sand the edges really well before bending or else hairline cracks can appear later.

The project was a big stretch for me, but I was fortunate to be able to watch and learn from an experienced neighbour who was building a dinghy at the time.

Here’s a short video of my construction:

https://youtu.be/qMGn8pbrwd4?si=downEBbnrLGoecVI

The increased visibility and shelter offshore is a complete game changer for comfort and safety. I also have water collection and extra solar panel power. A removable canvas backing seals it all in nicely for winter and night watches.

Other tips I learnt from my neighbour were:
– using hose for the edges which can be glassed over, for a neat finish
– Hose surround on the roof for water catching, with fine sand inside so it doesn’t crack when you lean on it
– finding an existing feature of the boat to copy and help the new structure fit in. I copied the angle of my transom for the rear angle of the structure.
– where there are fittings, like handrails, drill out some of the foam inner and and replace with epoxy filler for a bit more strength around the bolts.

John Tis

Well thought-out and designed project. I would be concerned that such a large volume of acrylic/glass both on the hard dodger and the large windows on the deck salon/pilothouse would be a problem if the boat were thrown over in heavy seas. I’m guessing you have storm plates fitted over those expansive DS windows for when it gets rough.

John Harries

Hi John,

I could be wrong, but I don’t think storm windows would do anything useful since I think the point of failure in a really bad knock down or wave strike would be the area where the dodger bolts to the old windscreen flange, either that or the whole works would crumple. The other problem with storm windows would be the added weight high up. Storm windows make sense when we are trying to keep the water out of the boat, but I don’t think they do in this case. More here: https://www.morganscloud.com/2014/12/27/qa-safety-of-large-pilothouse-windows/

Don’t get me wrong, I’m not criticizing Pat decision, but all add ons have draw back as well as advantages and in this case I think vulnerability to green water is one of the drawbacks. The good news is that even if the whole dodger were destroyed that would probably not compromise the watertight integrity of the boat.

Peter Dunbar

Thank you for all the details on your hard dodger story–super helpful and photos really convey the joys of boatwork in Scotland. I have an Ovni 435, so sailing in Scotland I am super tempted to build a hard dodger. However –and I want to thank all the commenters who discussed the risks to stability and windage. I am not worried about windage as I already have a canvas dodger and the metal one would be the same size, but the stability issue seems important. Can anyone put a hard dodger on an Ovni make a comment?

Colin Speedie

We didn’t have a hard dodger on our 435, although we often wished we had!

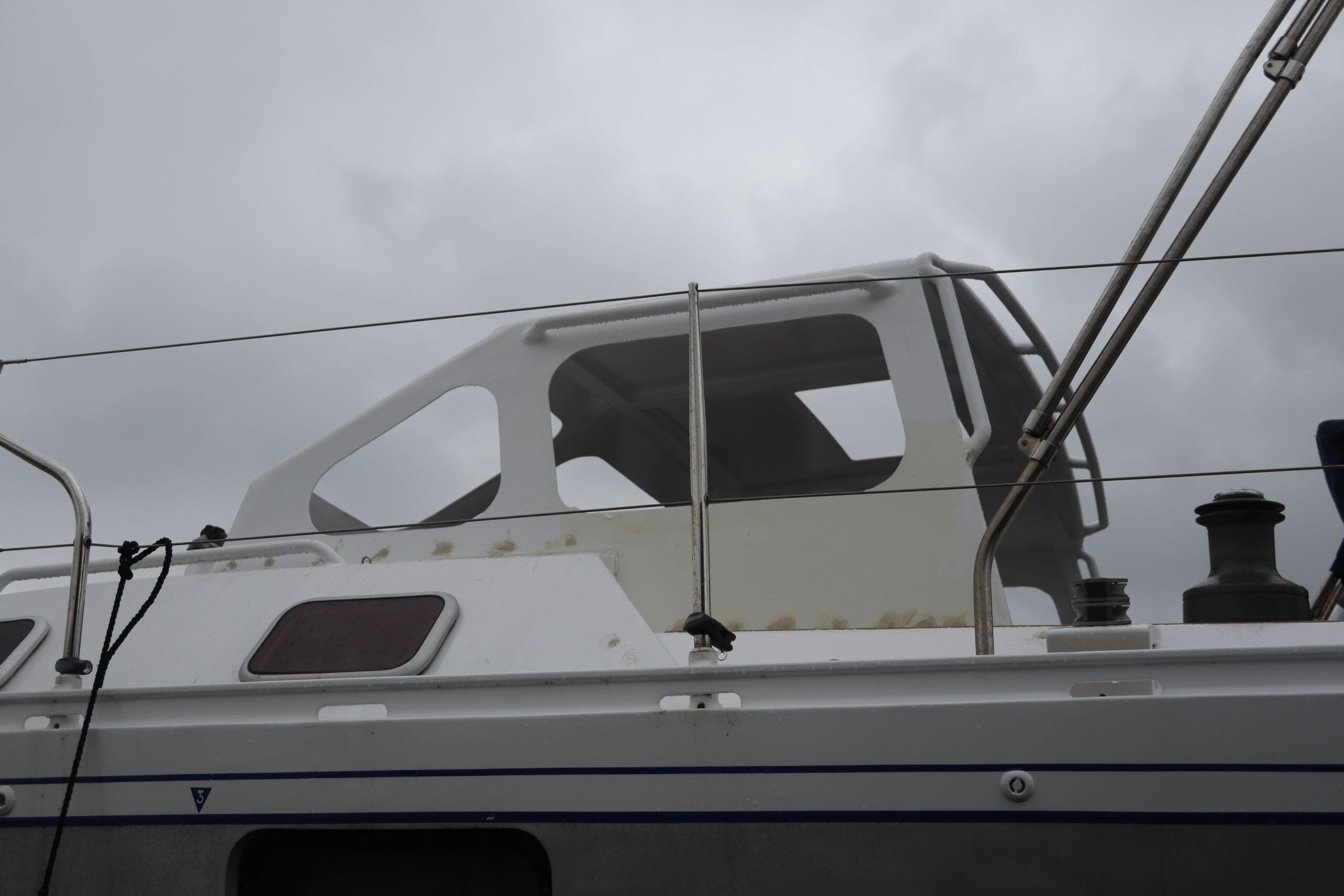

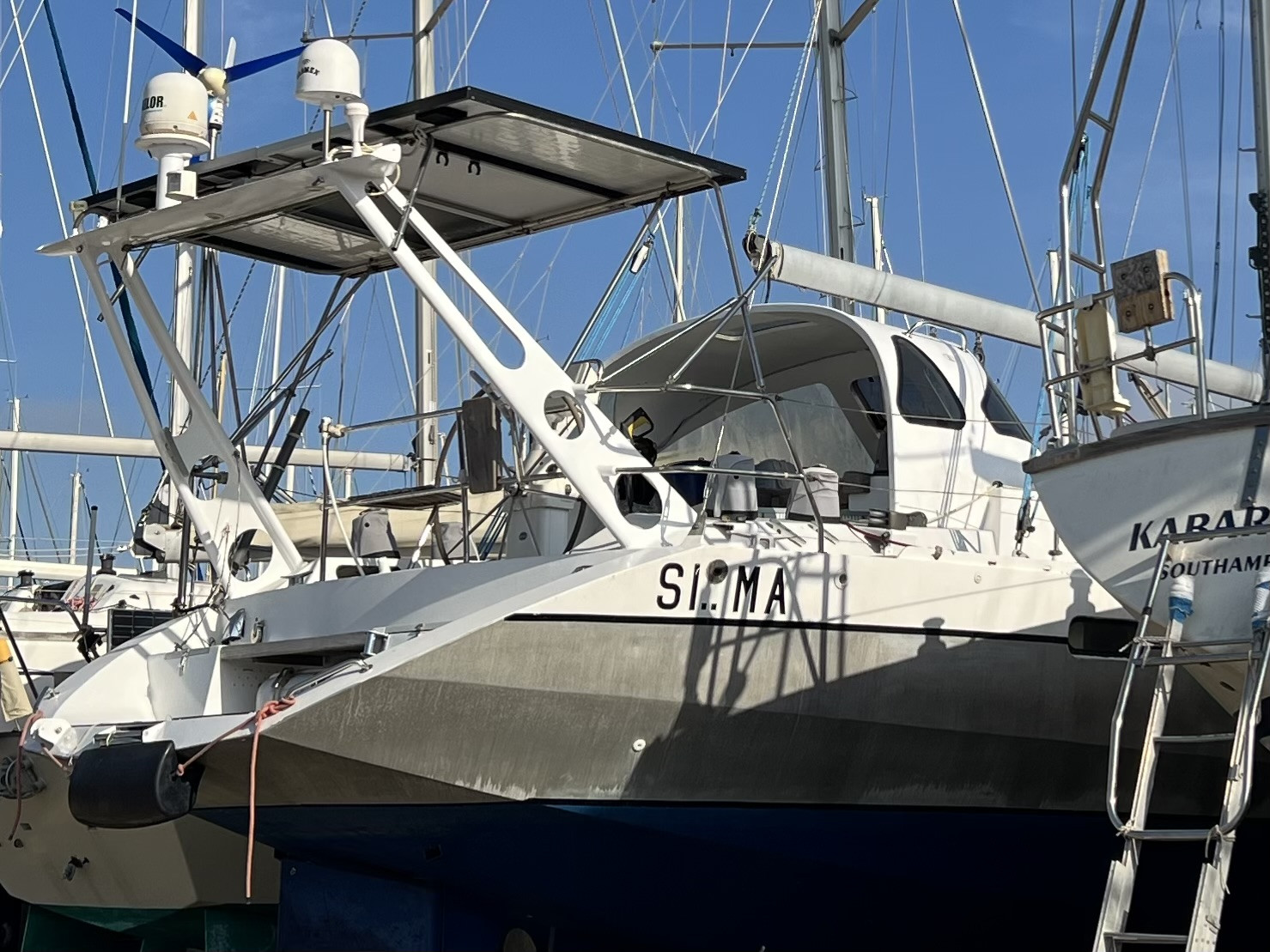

But I did see this nice example on a 435 at Burnham on Crouch, which the owner had designed himself, and it was well executed and looked sleek. I’m sure it would be possible to track the owner down.

Ovni-435-hard-dodger-1
George L

I won’t repeat the good observation that have already been made by others. Only minor points.

  1. 11K is a bl…y good price for this.
  2. seeing the Hilti on the floor makes me think that your welder isn’t cutting corners on tools. that’s a reassuring sign
  3. looking at the Vendee Globe, the hardcore professionals are sailing from the inside. the wind on the cheek thing apparently doesn’t matter if you take off 9 days off the record in comfort. confirms your choice of the large dodger

I hope it will give you a lot of fun and a good time

Rob Gill

Hi Patrick, interesting read, well written and illustrated – thanks.

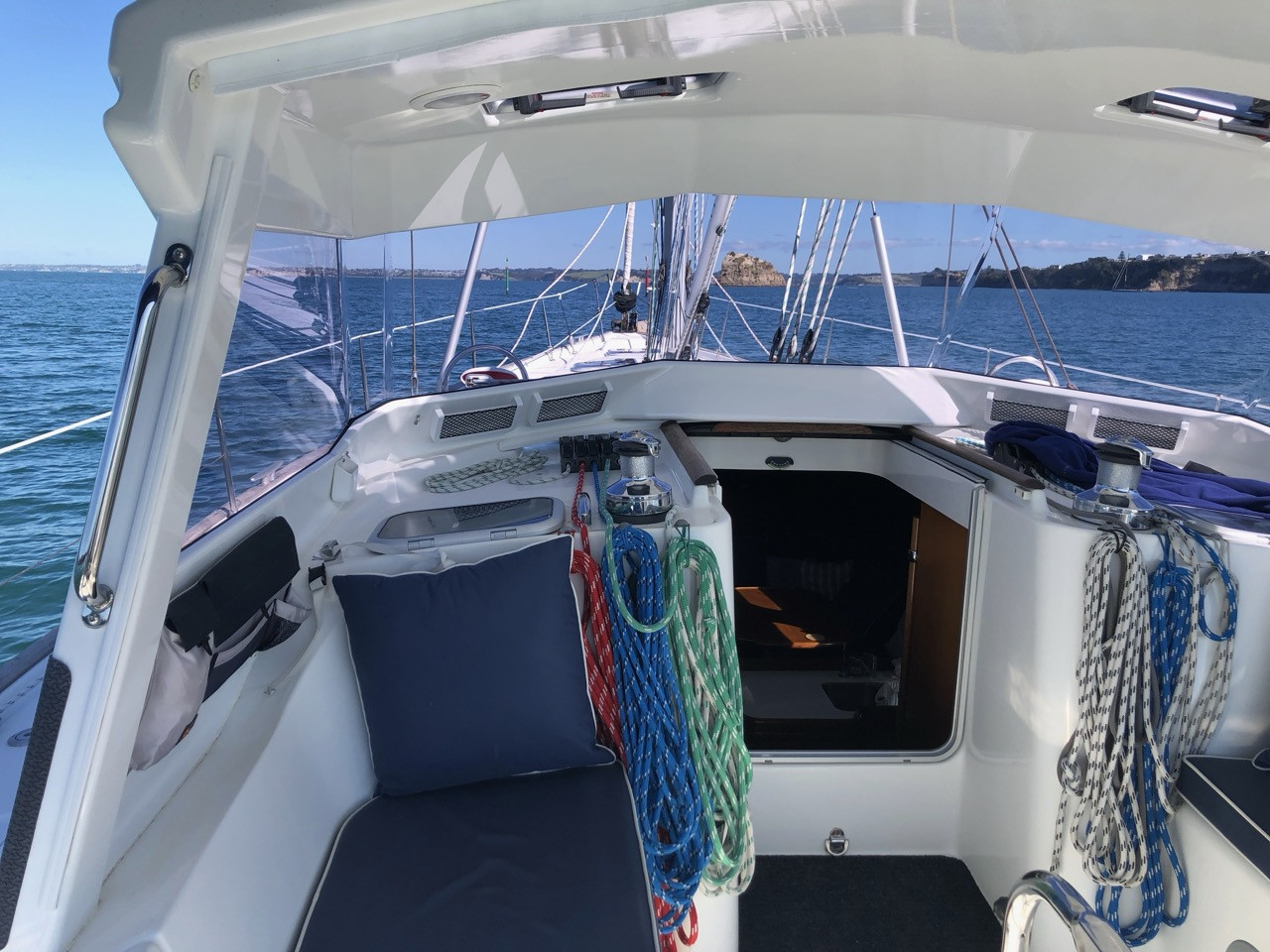

We have had a hard dodger on our Beneteau Oceanis 14.5 metre sloop since 2019. Built in fibreglass over ply – we too went for full standing headroom giving our first-mate better visibility from the aft helms.
