In the last chapter in this Online Book, I discussed Phyllis and my lifejacket usage and our thinking behind it. As always, we got some great comments on other ways to use and think about lifejackets, and several people mentioned auto-inflation options.
I also wrote about the issues surrounding whether or not to fit an auto-inflator at all or whether to go with permanent-buoyancy jackets—none of this is by any means an open-and-shut case.
But assuming that we do decide to use auto-inflation jackets, the next question is, which of the two types should we choose?

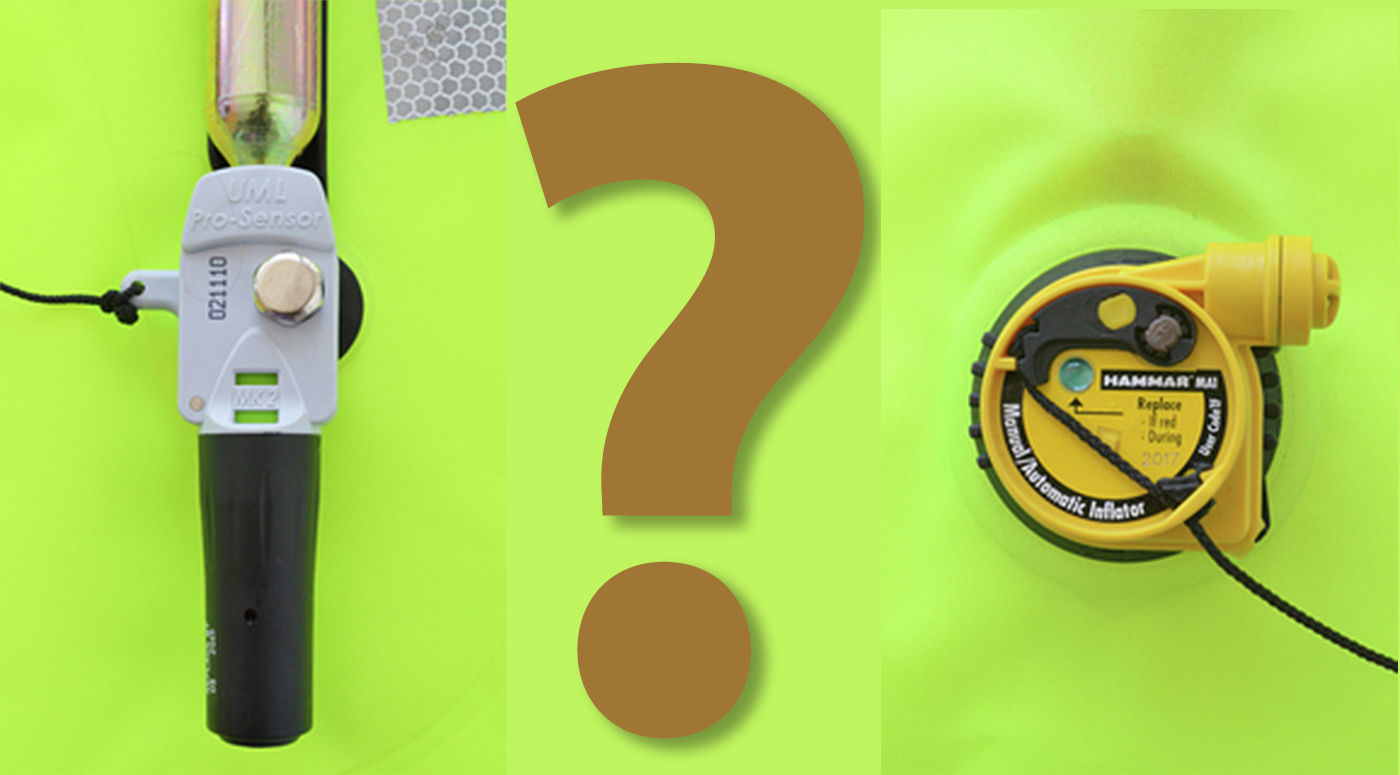

- Hydrostatic inflators from Hammar that trigger when the mechanism senses an increase in pressure as the wearer is immersed.
- Dissolving-tablet inflators that do just as their name suggests when they get wet.
John,
One more worth mention difference is the storage – Hammar initiated PFD can be left wet to dry with your foul weather gear in cold or warm or even dump place on your boat. Even new and clever tablets type PFDs can self inflate out of the blue in that circumstances /don’t ask me how I’ve learnt this 😉 / so user need to give them some more everyday /or every watch rather/ aftercare and protect them for excessive moisture wich can be quite tricky on some boats, watch schedules and latitudes.
Regards.
Hi Marcin,
I’m sure you are right about some tablet based triggers, in fact I know you are because I have experienced an inflation on a wet stored jacket.
That said, Ted assures me that this won’t be a problem with their new Pro Sensor, and so far (we have used it for a season) he seems to be right. Of course a season is not exhaustive testing and Ted could be blowing sunshine at me, but I think damp storage is now a solved problem.
John, you wrote “But Hammar-type pressure releases can’t be disabled” – while this may be true with the current H20 product types I don’t see why this should not be possible, in my imagination even easier to lock/unlock than with a tablet-based solution where you have to remove and reinsert the tablet. I am sure that if enough demand is given Hammar will easily come out with a lockable kit.
While I don’t see any use of locking a self-inflator in normal on-board routine I can see the situations that have already been desribed elsewhere, mainly wearing the vest when boarding or riding in a rib.
I currently have a tablet based vest, but my next vest will be a hydrostatic one so I will be able to compare. I tested my current vest once, and it took approx. 10 seconds to inflate and to bring me to surface, after jumping from the board, mimicking a motion I believe would be similar to being suddenly thrown overboard by movement or a wave. If one believes the Hammar product desription it activates with 10cm (3″?) immersion depth, so I suspect it of being faster than a dissolving tablet.
Hi Ernest,
You may be right about speed, but that’s not what Ted told me and I think they have done some testing. Also note that Ted picked the Pro release when put on the spot, which would tend to support that. Do note that the Pro release is relatively new and Ted claims it’s a big improvement on earlier disolved tablet releases, so it may activate more quickly than the one you tested.
As to Hammar coming out with a disarm kit, that would be great, but given that there has been real concern, based on real events, about the issue of getting trapped under a boat with an inflated lifejacket for (if memory serves) at least 5 years, I’m not at all sure it will happen any time soon. My position is that when thinking about safety we need to focus on what is actually available for purchase at a given moment.
All that said, without extensive testing of the two types by an independent and scientific tester—want to take this on, Drew?—we can’t know for sure and I can certainly see and respect your choice.
I’m interesting in this having fallen off a boat with a tablet-type, and owning a set of new DeckVests, which we’ve yet to wear in truly challenging weather and which I can’t even recall what arming type they have. A question: can the Deck Vests go from one type to the other? If you want a Hammar type, is it an easy retro-fit?
Hi Marc,
Good question. I pretty sure that the answer to switching types is no. I will take a look at the two types the next time I’m on the boat to be sure, but as I remember the bladders are different for the two types.
Hammer and Disolving table not interchangeable. One issue with the Hammer is the CO2 bottle is actually inside the life jacket so harder to check etc. Though not really and issue l guess. I’m just used to the ease of checking and changing the disolving table type where the hammers seems more complicated
This was my impression, but thanks for the confirmation.
Hi John – nice to know a bit more about these lifesaving devices.
We have UML type auto activators for our Baltic lifevests that appear very similar to the Pro-sensor units pictured above. Ours have a blank that convert them to manual inflation mode.
We have these for our nominated “splash diver” who dons a wetsuit to take the lead in inflating the life raft and being the one who boards first, rights the life raft if required, and assists the followers in case of an abandon ship. The splash diver may also be needed for MOB recovery where the MOB is beyond self help.
In each of these cases, an auto-inflated jacket will most likely be an encumbrance rather than an assistance, and having the manual inflation option is preferable.
Rob
Hi Rob,
I think that’s a good way to look at it, particularly since one of the biggest contributors to the loss of the young woman off the Clipper boat was that the rescue swimmer’s lifejacket self-inflated at just the wrong movement.
For jumping or working in the water and inflatable driving in hard weather I use apart from drysuit foam type PFD – model for firefighters water rescue teams. Very streamlined, crotchstraps and integral safety belt with chest and back clipping points /but te back point can be easily released in emergency by the swimmer using dedicated front buckle/ 80N placed with active swimming in mind, lot of pockets including dedicated back pocket for throwing line.
There is also model with additional manual inflatable collar bladder giving you total 80+150 N when you need it.
Hi Marcin,
Yes, I think that if you know in advance that you are going into the water, a foam type permeant buoyancy wins over any sort of self inflation option. I guess the exception would be if one did not want any buoyancy at all, but wanted the option, in which case a manual inflator jacket would make sense.
That of course leaves the question of which a rescue swimmer should have? I wonder what the professional USCG rescue swimmers use?
Hi John,
I don’t know about Coast Guard, but British RNLI AFAIR use permanent floating vests with manual pneumatic additional float chamber and double chamber pneumatic vests with one chamber automatic and second manual for rescue swimmers and rib crew>
http://crewsaver.com/uk/9326/commercial/lifejackets/155/inshore-380n
http://crewsaver.com/uk/9326/commercial/lifejackets/154/offshore-290n
I´ll think the only right choise here, is to wear Lifejackets all the time… (when at sea a 🙂
The manually activated option of the auto-inflate vests we own caught in a crab trap I was deploying. It is a shock and is a potential design flaw. It has to be available but too available and it trips accidentally.
“You can’t have the cake and eat it”, or, as Goethe put it, when there’s light, there is shadow.
Hi Kurt,
That’s a hazard I had not thought of. Thanks for bringing it up. What brand of jacket was it?
John,
We chose Spinlock Deckvest Pro 5D PFDs [circa 2013.]
We prefer the disolving tablet [UML Pro sensor] type for reliability, simplicity, rapid inflation, and cost and availability of spares.
Our pre-purchase bias for the Pro inflation mechanism was further reinforced by the following brief video Spinlock links from their website demonstrating resistance to ‘accidental’ [non-submersion] activations:
https://youtu.be/vv6v6A1wnX4
As you know, Spinlock sells manual inflation retrofit kits [i.e., manual only vs. manual optional] in case we ever decide that is better for given circumstances. [Not likely in our case.]
There are many other features we like about the Spinlock Deckvests, but I will confine this comment to the question you asked about inflation mechanism preference.
Cheers! Bill
Hi Bill,
Thanks for the link to the video. That does seem pretty convincing.
Hi John.
As I’ve mentioned several times, I’m not happy with several issues related to vests, and especially self inflating ones. The topic here, of course, is just the auto release mechanism, none of the other issues. I have had two laundry threatening shocks from unexpected vest releases, salt tablet type, including once sitting next to it inside eating lunch. They move fast… In none of the cases had the vest been in unusually wet conditions recently, but in both cases the tablet was almost a year old, indicating that a year between changes might be too much. Either way, this has made me doubt the merit of salt tablets, but I’m probably not up to date. I’m still not sure how repositioning the water inlet can help much, though….
By the way, i have the impression that most users don’t actually change their tablets at all. I’ve heard claims that old tablets can get hard and thus extent release time a lot, even totally prevent it. I have no first hand experience with this, though.
The last time I did an offshore safety course, (mandatory for longish ocean races) is maybe 10 years ago, (I don’t do much ocean racing anymore) at Falck Nutec near Oslo. They also do safety training for the offshore oil business in the North Sea. In their courses they use auto inflating vests several thousand times every year. New ones, reused ones, and those their customers bring. They told me that about 20-30% of the vests do not satisfy the minimum of functionality required by the certification rules. The most common problem is that the self inflation is triggered to late or not at all. The second most common is that they don’t turn face up quick enough, which I think was max allowed 40 seconds. (?) The inflatable ones are generally far better than non inflatable ones in turning the victim, but only when they work….
Personally, I’ve removed the salt tablet, as I think it causes more danger than it contributes to safety. I agree that this must be a judgement every user must make, not a general guideline.
Hi Stein,
One clarification, the Spinlock Pro release is a special dissolving paper, not a salt tablet, so maybe that’s better, Spinlock claim it is.
And I agree that regular service is vital.
And yes, I can certainly see that in a large sample, like you friend sees, there will be failures and partial failures, particularly since I think many people do not service their jackets as regularly as the should.
Despite that, I think I will keep our auto inflators armed on the theory that even if it does not fire, we can manually inflate and are no worse off than just manually inflating in the first place. That said, your comment reminds me that we need to think about where our manual inflation handles are and practice grabbing them, not something Phyllis and I were doing—there’s always more to learn.
Hammar does sell a manual conversion kit, http://www.landfallnavigation.com/ma7219.html
Keith
Hi Keith,
That’s interesting and good to know. I wonder why Spinlock don’t sell it. Anyway, I will correct the post, thanks.
John,
My guess is:
“This conversion cap, when applied, voids any USCG approval for the device.”
Hi Sam,
I don’t think it’s that since most of the Spinlock lifejackets are not USCG approved anyway.
I have and use either of two PFDs with integrated harness and Hammar hydrostatic release mechanisms, one by Mustang and the other a Spinlock. After several years in the Mustang, the Hammar mechanism broke through the vinyl view port. It still inflates and holds air, but a boat show price resulted in my buying the Spinlock offshore jacket. After many days in it, I prefer the Spinlock because it is more comfortable (for example, a little easier to sleep in than the Mustang has been), and the Spinlock has great gear pouch options for storing a headlamp, PLB, and snacks, and I can stow my knife out-of-way but accessible in the waist band. I’ve never had an inadvertent release with either PFD, despite some stomach-dropping, waist-deep wet work on the bow.
After jumping in with a Mustang (as a test) and feeling like my head was going to be popped off, I became an advocate of using crotch/thigh straps. I added them to my Mustang, and the Spinlock came with them. My conviction that using the well-adjusted straps is important was both tempered and reinforced (the well-adjusted part) by the 2013 Uncontrollable Urge accident which involved the filled chamber coming off the heads of several of the crew in the surf zone, including the one fatality. After reading the US Sailing report on this unfortunate incident, I prefer my Mustang for coastal races!
Regarding choosing between the hydrostatic and dissolving PFD release mechanisms, some interesting and relevant commentary here, especially comment 11: http://www.cruisersforum.com/forums/f2/deckvest-hammer-or-pro-166072.html#post2119363
While watching the replay of the Volvo Ocean Race Start from Auckland, the leg jumper goes in and his vest does not inflate. Don’t know what kind it of infiltrator was on the life jacket but it is a Spinnlock. You can clearly see it get submerged a few times.
https://youtu.be/J1BRrcSilB4?t=3896
This was a voluntary jump in a float suit so it might quite well be that the inflator had been disabled.
If not, and if it was a hydrostatic mechanism, you can see that he was floating with the lifejacket well at the surface – the Hammar mechanism needs at least 10cm submersion to activate.
Anyway you can’t use this video to prove that auto-inflators don’t work.
Hi Sam,
Probably Hammer and jumper hasn’t dive deep enough – I can believe this, as with thick polar fleece middle layer underneath my drysuit /really thick – Admirality Bay, King George Island/ I haven’t use pfd of any kind during work. One only need to release excessive air from drysuit – if it migrate to lower part of your suit you may find yourself in some trouble.
Hi Marcin,
So true, when I go in in my arctic level dry suit I need 65 pounds of weight to go neutral, and that only after I expel all the air in the suit.
One point I believe that has not been brought up, is with travelling on airplanes with inflatable vests. The airline industry regulations are not standard worldwide . They continue to change the rules based on the level of terrorist activities. The issue is the compressed air cyclinder . When I am travelling with my inflatable vest ( which is the dissolving tablet activation type) I am able to remove the cylinder from the vest and store it separately, therefore eliminating the risk of security taking the whole life vest when all they want is the cylinder. I can always buy another cylinder .With hammar type vest it is not possible the remove the cylinder without disarming the firing mechanism therefore requiring that a new mechanism at great expense. So travelling with the hammar vest one runs the potential risk of losing your vest to security.
This is true. I took my Stearns vest to the USVIs and was not stopped with it as hand luggage leaving St. Thomas. But as I connected at Philadelphia for Toronto, the mall cops insisted I dump the cylinder. The application of this rule seems capricious and random, meaning I will have the Spinlocks on the boat only, and if I do deliveries, I’ll take a lower-quality PFD. I guess the terrorists have won!
Hi Marc,
To clarify, Spinlocks can be bought with Pro (Non Hammar) releases. That was the whole point of my article and the Pro sensor is my preferred option. So there is no need to “take a lower-quality PDF. Nor is a Pro release any “lower quality” than a Hammar, it’s just different, with different strengths and weaknesses.
This wouldn’t do away with the possibility of the airline refusing to transport the pressure cylinder. The last time a flew into Turkey I had a security agent scan all my baggage after they noticed the (removed) cylinder, but I could convince the plane captain (!) that this wouldn’t give any security issues, still I had to remove the cylinder from the baggage, it has been stowed somewhere by the flight personell and handed back to me after arrival.
Fortunately on my next delivery there are brand new Pro vests on the boat so I don’t need to carry mine 🙂
True, John, I have the “Pro” (cylinder) type, but I’d rather lose said cylinder from the Stearns than the Spinlock. It’s the wayward assumption that a PFD is some sort of bomb on one leg of an air journey, yet perfectly fine to carry as carry-on luggage while “armed” (and I use the term advisedly) on another leg I find annoying. I have heard some people who do deliveries request that the skipper buy them a cylinder at the pick-up point so that they needn’t have theirs binned at the gate. The skipper gets an extra cylinder for the next crew.
Hi Hans,
Now that’s a good point I had not thought of, thanks.
Just doing some research on this and it seems that now the Spinlock 6D only has the (new) “Pro Sensor Elite Automatic Inflator [which] replaces the Pro Sensor Automatic Inflator late in 2018”. As far as I can tell, only the Spinlock VITO has the Hammar inflation system now (with no option for the Pro Sensor). The VITO may be more appropriate for offshore sailing anyway but I will be going for the 6D for now.
Hi Michael,
That’s OK with me, as in that I’m not a fan of the Hammar inflator except for racing bow persons who get regularly submerged. Since I wrote the above, I have received even more credible information about inflation failures and delays with Hammar releases.
Thanks, John. It is a pity the VITO doesn’t have the Pro Sensor option. I would be inclined to buy those when I truly start sailing offshore next year (this year will just be pottering around the Baltic).
Hi Michael,
It’s a personal decision, but having spoked at length to Spinlock about the differences between the VITO and 6D I would go with the 6D anyway. The key thing to understand is that the VITO is not better than the 6D, just different. In fact it was developed for the special needs of high end professional race boat sailors and so is not generally a good for cruising as the 6D.
Go to know, John. Thanks.
Hi John,
I am shocked by the “up to 10% failure rate” of life jacket inflation reported in the 2024 update insert above. For Hammar Hydrostatic Lifevest Inflators, jumping in a pool should largely provide the minimum 10 cm water pressure difference that is required to trigger the inflator, so there’s no excuse to find there.
10% of failure is a huge proportion for this safety critical device; “most of them Hammar” is altogether unacceptable, I would suggest. Would be worth confirming, and asking Hammar about the >5% fails. I find this astonishing and I would not downplay the 2, 3% fails of dissolving-tablet units either.
The only caveat, maybe, is that these vests are the volunteers’ own if I understand the paragraph correctly: are they all properly checked and maintained, especially the Hammar ones which require more work to inspect?
Regarding that same post, I would suggest not using the terminology “Hammar hydrostatic releases”, because it can lead to confusion with HRU (Hydrostatic Release Unit), intended for the release of equipment such as an EPIRB, a life raft etc. I believe the right term for this article is Hydrostatic Lifevest Inflator, or something along those lines.
Curious to hear of any follow-up regarding fail rates especially.
Regards,
JL
Hi Jean-Louis,
I see your point, but I don’t think I’m diving down that rat hole. It’s important to note that this occurred during courses where people were bringing their own PFDs. I would bet that over half had not been serviced properly, particularly those with the Hammar unit which must be totally changed to service, a process thats a royal PITA and expensive.
That said, I did hear a theory that the problem was that before the water penetrated a tightly packed PFD and got to the Hammar in sufficient quantities to trip it, the person had bobbed above the level required for tripping.
To me this highlights the importance of being aware of servicing our PFD’s once a year and knowing where the manual inflation handle is and being trained to pull it after going in the water if the vest does not immediately inflate, and confirms for me that the tablet sensors are the way to go for most of us.
