Question
Member Kimbal asked:
I’m looking at an ad on Yachtworld for a boat that has “New Victron Super Cycle AGM batteries – 3 x 125ah (2022) – Note: These batteries are a new type of AGM which approach lithium in some respects, and matches the Carbon Foam Firefly batteries performance – capable of up to 100% depth of discharge occasionally, and 60-80% frequently without damage.” Have you heard of this, and does it sound legit?
Answer
Yes, in fact that’s what we have installed on our new-to-us J/109, and testing at Ocean Planet seems to indicate that they do very well on deep discharges.
So far we have not used them enough to say anything really useful, although they are looking good after one season.
That said, it’s important to understand that Victron have two offerings with different strengths:
- Super Cycle, which we selected because we have a very small bank and occasionally will need to take it a long way down, say when aboard for a weekend, but will be able to bring up to fully charged at our wharf when we get home.
- Carbon Foam, which might be better for a long-distance cruising boat since they are more resistant to being left in a partial state of charge.
Do note though that all discharge cycles of all batteries (lithium included) reduce life to some extent (batteries are expendables) so claims like “and 60-80% frequently without damage” are simply not true. Like with Firefly, it’s important to read the fine print.
Interesting.
Is the move from lead acid to lead carbon going to pose the same potential issues that Lithium does ?
Hi Mark,
If you are referring to installation issues, then no. These batteries really are “Drop-In” to a place where a conventional lead acid battery was, with the possible exception of some minor reprogramming of the charge regulators.
Hi John
So, more expensive batteries but maybe fewer of them ?
Hi Mark,
Mine were not a lot more expensive than a good AGM, if I remember. But check on that. Note that if you use fewer your cost per cycle will go up, just as it does with every battery. That said, that’s exactly what I’m doing to save weight on the J/109.
Wow, those carbon foam batteries seem really large for the capacity!
Hi Ray,
When I checked they had a slightly higher energy density than most AGMs. Of course all lead acids have lower energy density than lithium.
It looks like 160ah in an 8d size. Lifeline 8d is 255. Unless I’m missing something here.
Hi Ray,
Beats me, I did not check that size. Is that the carbon foam or Super Cycle? I have the Super Cycle in a smaller size. Anyway, thanks for the heads up.
Hi John first of all thanks for the fantastic input!
I am in the middle of replacing my batteries with Victrons.
There is a significant size difference
AGM Super Cycle 100 Ah: 260 x 168 x 215

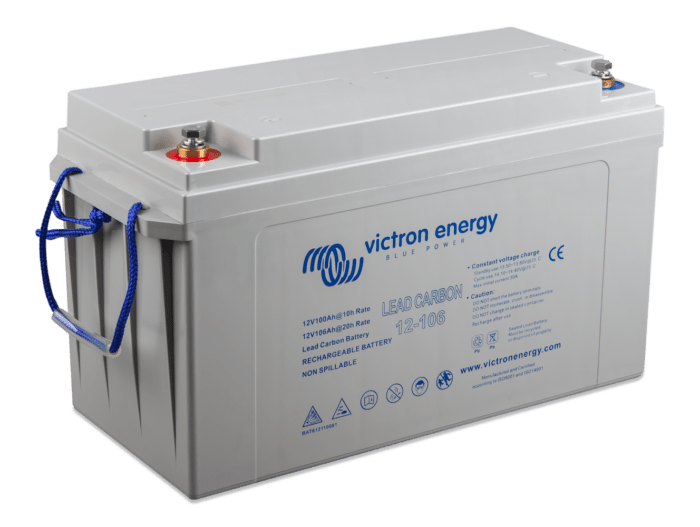

Lead Carbon 100 Ah: 410 x 172 x 225
Gives me more capacity!
Hi Thomas,
That is a big difference. Thanks for highlighting it.
I moved from Firefly Carbon Foam batteries to the Victron Super cycles in 2022. I struggled with the Fireflies for 2 years experiencing multiple failures. Each would be examined by the vendor, replaced under warranty and then fail again. Finally the US importer of the batteries acknowledged they’d stopped offering Fireflies due to issues with the supplier, and were unable to make good on growing warranty issues in a timely manner. They offered me the Victron Super Cycle batteries at cost and very low shipping cost and i jumped on it. 2022 was a much better year for batteries on our boat. I’d upgraded the charging system to accommodate the Firefly batteries – new alternator, added a charging regulator, replaced the shore charger, but still had consistent problems. Only 1 out of 5 Fireflies maintained capacity over 2 years. The Super Cycles have run well with no problems whatsoever.
Hi Thomas,
Sorry to hear about the issues with Firefly batteries, but thanks for sharing your experience to help others.
Your experience is consistent with what Bruce over at Ocean Planet Energy told me about the problems he was having with the Firefly batteries when he sold me the Victrons.
It will be interesting to see how the Victrons hold up for both of us.
Since you’ve mentioned them, I’ll also say that Ocean Planet was working with me on the Firefly warranty issue, and I felt like they did as best they could. They were very supportive, but getting nothing from Firefly in India. They also recommended the Victrons and got them to me quickly for a great price. I’m selling the boat I put them on this week so I won’t be able to comment on more than one season, but they were great this year.
Hi Thomas,
Thanks for the fill on that. What a pity QC problems have scuttled the Firefly since it’s fundamentally a great product and probably a better bet than lithium for many of us.
Hi, I am looking at Victron Supercycle AGM batteries and I am wondering if you have any update on their performance or have any new information on their quality/life expectancy. I am comparing the 125 amp/hr battery to the Lifeline 31XT which is also 125 amp/hr battery. Which do you think is best for cruising, including extended periods away from the dock? Thanks.
Hi Ken,
I have had my Victrons now for two years and they are holding up well, but then again, my usage is very light, so that does not tell us anything useful.
On the other hand I used Lifelines brutally (full time live aboard, no solar at the time) for years on the M&R and can tell you that as long as they are equalized regularly they will do well for you.
One drawback with the Victrons is that they can only be charged at .3c whereas the the Lifelines are happy up to 1c and thrive on .5c
You will find several chapters on how to care for lead acid batteries starting here:https://www.morganscloud.com/2011/02/10/eleven-steps-to-better-battery-life/
Hey, John. It looks like my batteries were not well looked after by the boat yard in Sweden over the winter and they have crapped out. I am looking at the new Victron AGM Super Cycle batteries but am a bit confused about the rating and I am hoping you can help. I currently have 3 X 100Ah batteries. On the Victron product sheet they talk about a C5, C10, and C20 rating. Although I understand a bit what that refers to (its a load rating if I understand correctly), how does that relate to 100Ah of my existing batteries? Which one of the Cs should I be comparing to?
Hi Michael,
The C20 corresponds to the nominal battery rating and so will relate directly to the batteries you already have.
Thank you, John.
